The air conditioner kit is equipped with the following indoor units:

• 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m

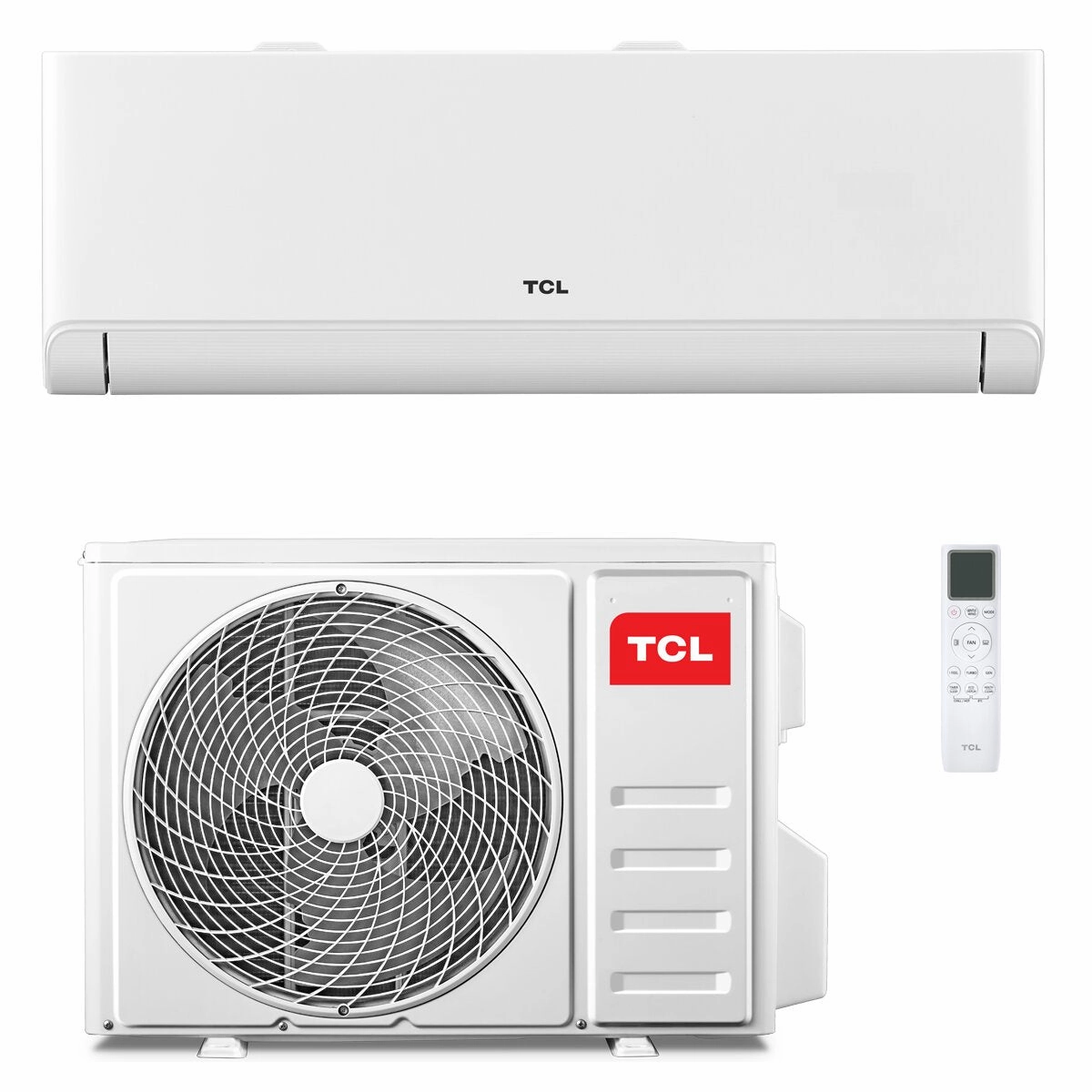

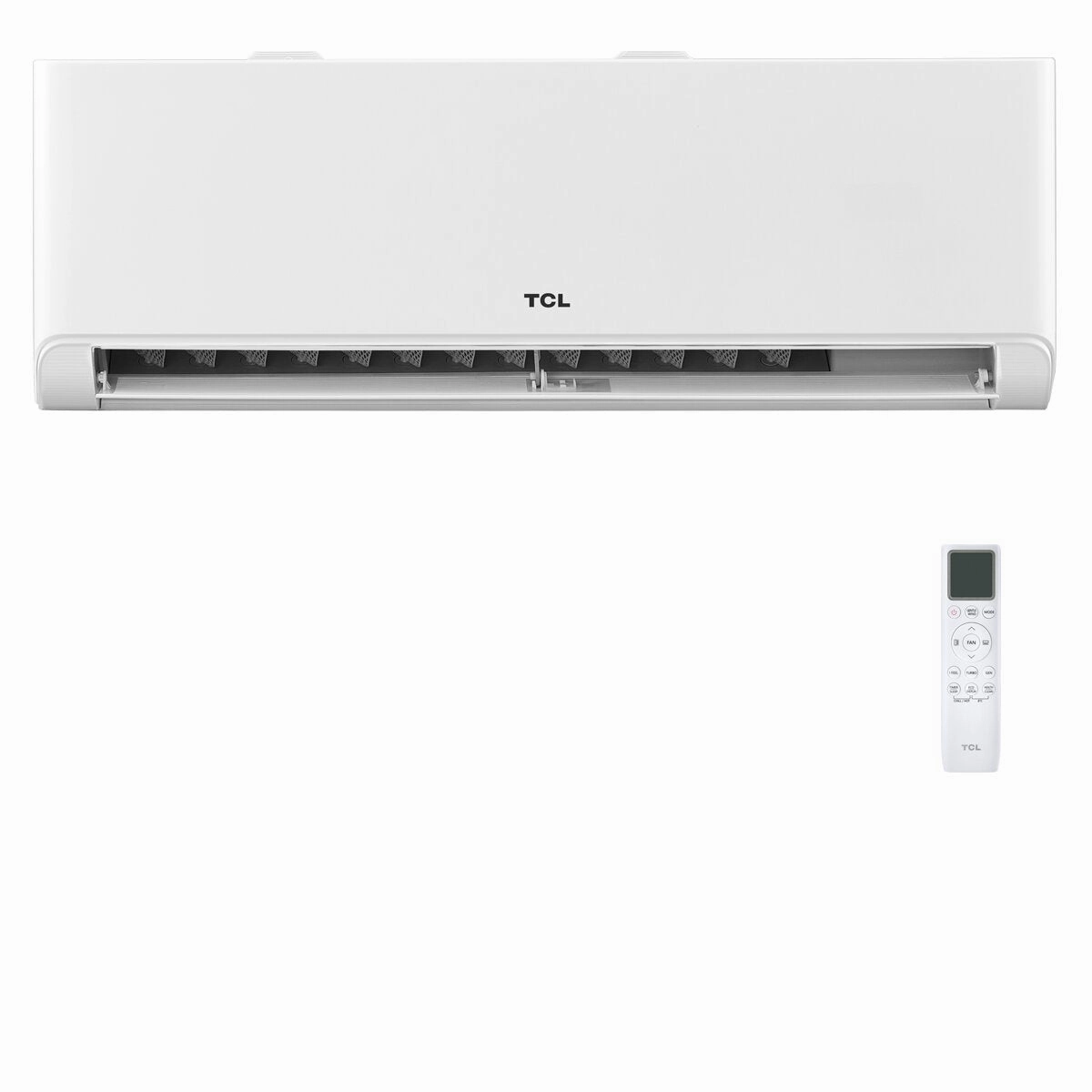

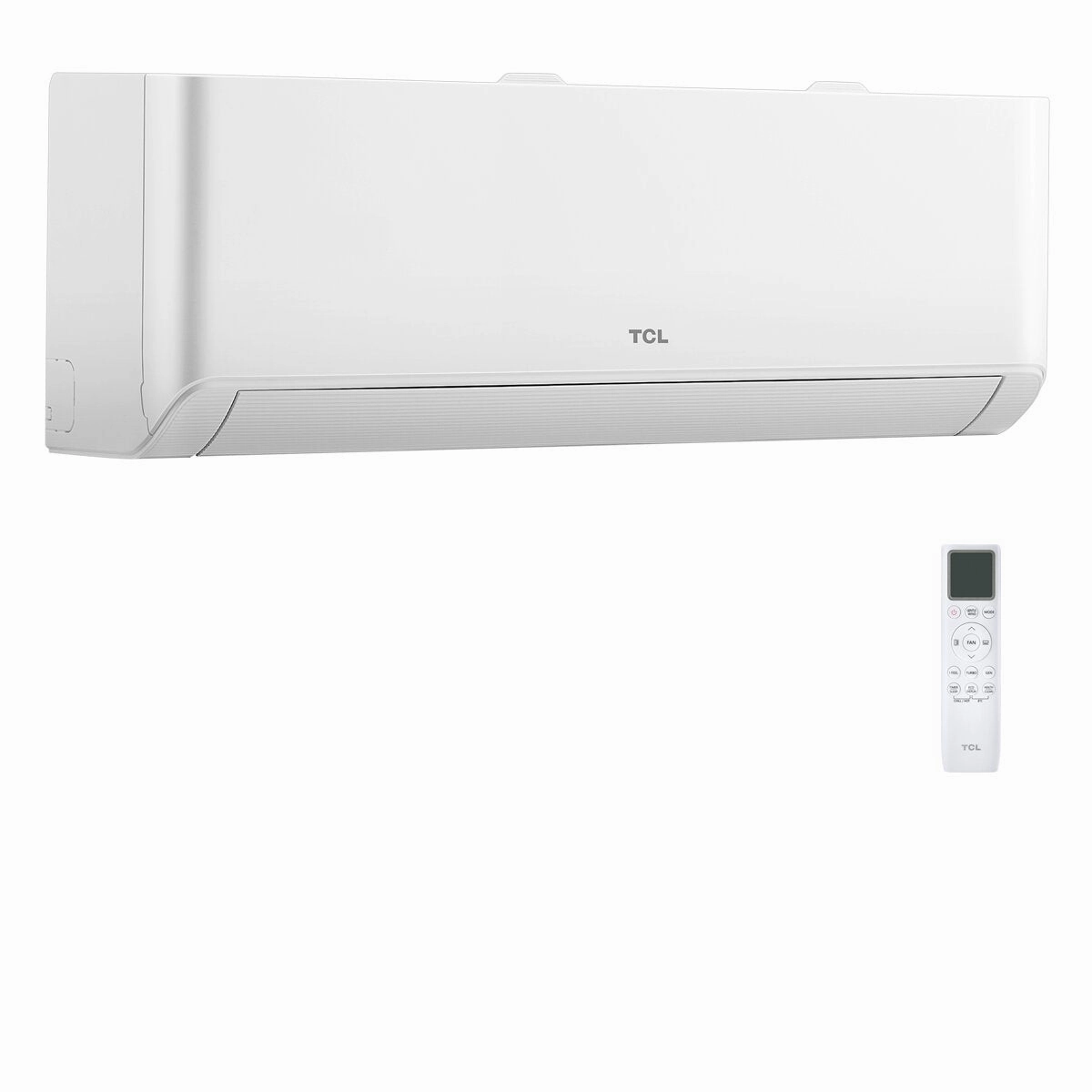

The TCL BreezeIN P5 air conditioner is silent, efficient and with a modern design, ideal for those looking for a complete and reliable solution for residential or professional air conditioning. Designed to ensure high climate comfort and low energy consumption, it uses ecological R32 refrigerant gas and is classified in energy class A in cooling and A in heating , making it an efficient choice all year round.

Among its main strengths we find the AI Inverter system, which precisely regulates the power supplied to quickly reach the desired temperature and keep it stable, reducing thermal oscillations and optimising consumption.

TCL BreezeIN P5 indoor units can be combined with the appropriate outdoor heat pump units to create customized mono or multi-split configurations.

DESIGN AND AIR QUALITY

The design of the TCL BreezeIN P5 stands out for its clean and compact line , designed to integrate discreetly and harmoniously into any home or professional environment. The front panel, finished in matt white , conveys a sense of order and visual lightness, avoiding annoying reflections and giving the air conditioner a sober but modern look.

A distinctive element is the micro-perforated surface of the front fins, which not only has an aesthetic function, but also allows the diffusion of air in Gentle Wind mode. This detail gives the product a unique character, technically advanced but also visually refined, suggesting the idea of comfort distributed with precision and delicacy.

The TCL BreezeIN P5 is designed not only to regulate room temperature, but also to ensure high indoor air quality , thanks to an advanced filtration and sanitization system, designed to improve daily well-being.

At the heart of this system is the Deep Clean function, an automatic four-step process that thoroughly cleans the internal heat exchanger. During the cycle, the unit activates a sequence that includes cooling the internal surfaces to encourage the formation of frost, followed by heating to dissolve it, and finally complete drying via ventilation. This process eliminates residual humidity, mold, dust and bacteria , significantly reducing the risk of contamination and unpleasant odors.

The air conditioner is also equipped with a high-density filter , capable of retaining finer dust particles than standard filters. This helps keep the air cleaner and preserve the efficiency of the system over time.

The airflow is further improved by Gentle Wind technology, which thanks to the diffusion through micro holes avoids turbulence and distributes the air evenly, without raising dust or creating annoying currents.

TECHNOLOGY AND EFFICIENCY OF THE TCL BREEZEIN P5 AIR CONDITIONER

TCL BreezeIN P5 air conditioners represent an advanced solution for home air conditioning, combining energy efficiency, personalized comfort and intelligent technologies such as AI Inverter, an algorithm developed by TCL that adjusts the compressor to quickly reach the desired temperature and keep it stable within 0.5C, reducing consumption by up to 60%.

Here are some of the settable functions: Cooling/Heating/Dehumidification and Ventilation for the best seasonal comfort; Rapid Cooling and Heating : thanks to the high-frequency compressor, the air can reach 18C in just 30 seconds or 40C in 60 seconds, ensuring immediate comfort; ECO mode : optimizes energy consumption by maintaining the room temperature at 26C, contributing to significant savings on the electricity bill; 3D Airflow : the motorized fins adjustable both vertically and horizontally allow uniform distribution of the air, adapting to the geometry of the internal spaces; I Feel function : the sensor integrated in the remote control detects the room temperature and adjusts the operation of the air conditioner to ensure maximum comfort. Further settable modes can be viewed in the user manual supplied with the product.

Advanced features include: ON/OFF contact that allows integration with external devices such as window sensors or room badges, useful in hotel settings or for home automation; ModBus RTU interface that allows direct connection to Building Management Systems (BMS), facilitating centralized management in complex buildings.

The TCL BreezeIN P5 air conditioner can be conveniently managed with the supplied remote control or via wired control (optional) , ideal for professional installations or shared environments. Thanks to the integrated Wi-Fi connection, it can also be controlled remotely via the TCL Home app : switching on, adjusting the temperature, programming and monitoring become simple and intuitive, wherever you are. Also compatible with voice commands via voice assistants such as Google Assistant and Amazon Alexa.

The air conditioner is wall-mounted, installation and maintenance are simplified by the fixing grille and the body specially designed to facilitate access to the internal components.

ACCESSORIES INCLUDED

- Remote control

- WiFi included

WARRANTY

The warranty is the official TCL one and lasts 2 years.

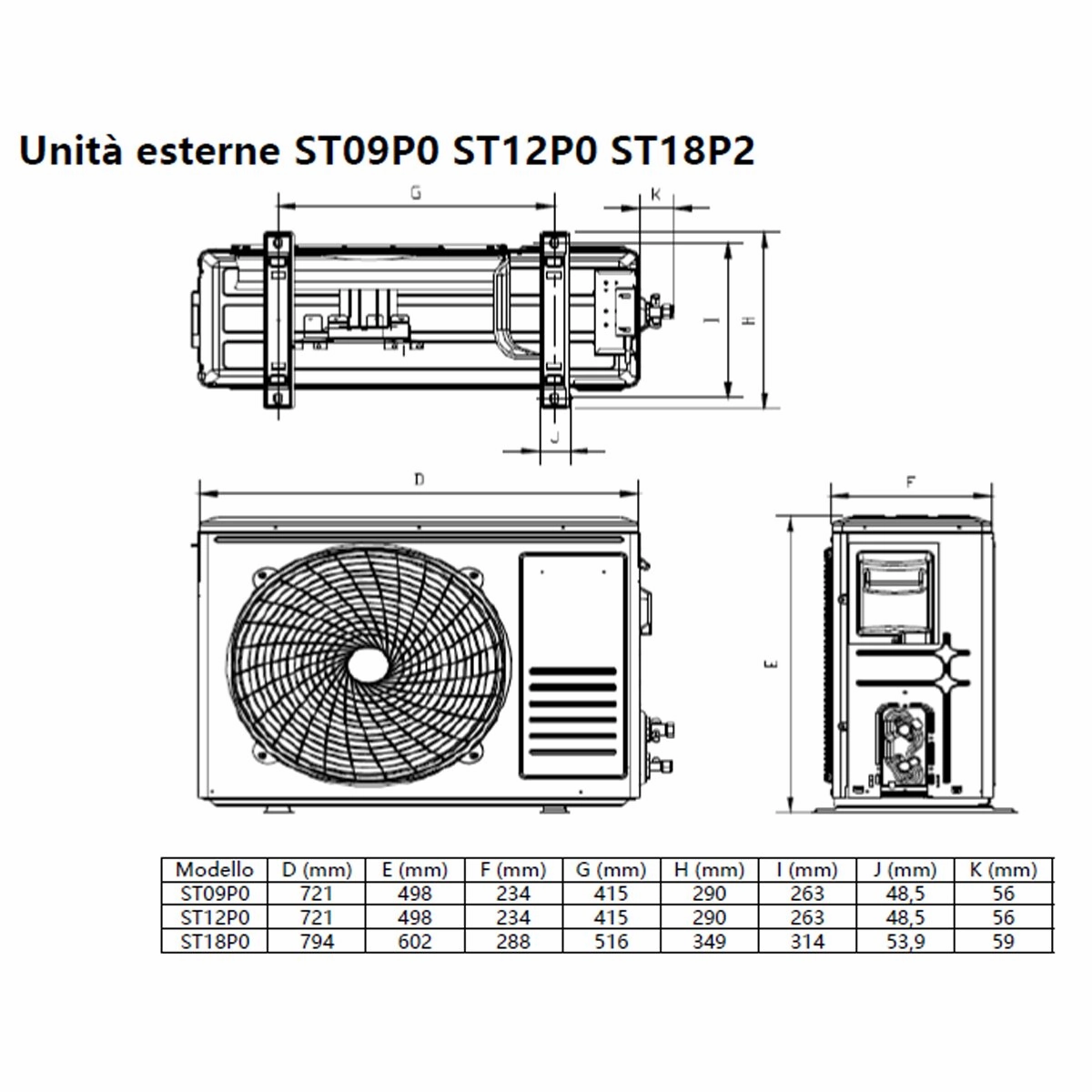

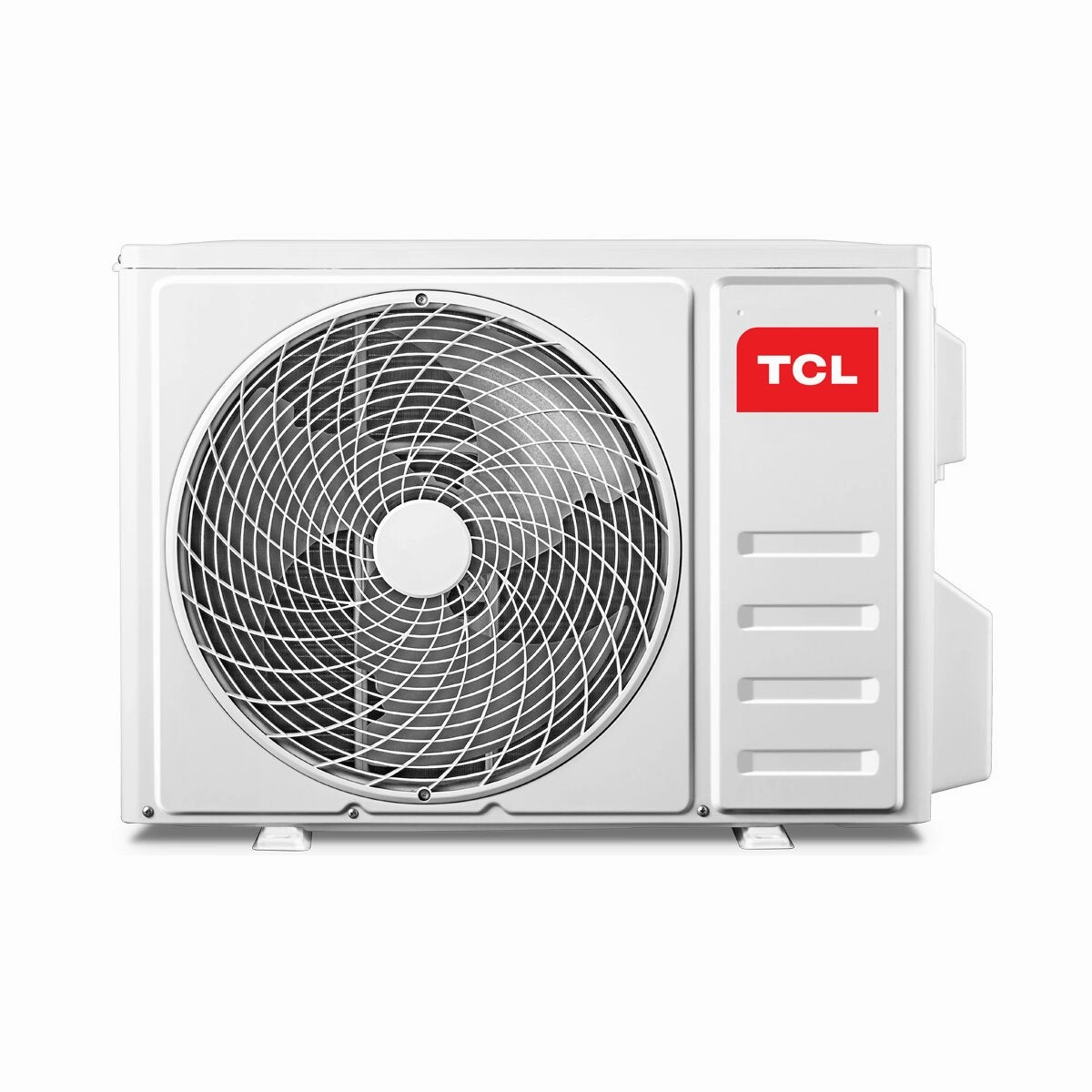

THE EXTERNAL UNIT

The external unit of TCL air conditioners is designed to offer efficiency, silence and a discreet design, easily adapting to different living contexts.

External units for monosplit allow you to connect only one internal unit and specifically the one with the power for which they are designed; in association with the appropriate internal unit, they are generally used to air condition a single room.

EFFICIENCY AND ENERGY SAVING

The external unit of the TCL air conditioner has a compact and solid design, designed to integrate discreetly into the external environment, both on walls and on balconies or roofs. The structure is made of white painted metal, resistant to atmospheric agents and designed to last over time, even in adverse weather conditions.

Inside it houses a high-frequency inverter compressor , which guarantees high performance and low consumption, capable of quickly reaching the desired temperature 18C in 30 seconds for cooling and 40C in 60 seconds for heating. The large front fan , protected by a sturdy grille, is optimized to promote a powerful but silent air flow, with a low noise level.

It uses R32 refrigerant gas, which is more efficient and has a lower environmental impact than traditional refrigerants. Access to internal components is simple and functional, facilitating routine maintenance operations.

Overall, this outdoor unit combines efficiency, quietness and robustness , making it ideal for residential use without sacrificing performance or aesthetics.

WARRANTY

The warranty is the official TCL one and lasts 2 years.
