FEATURES

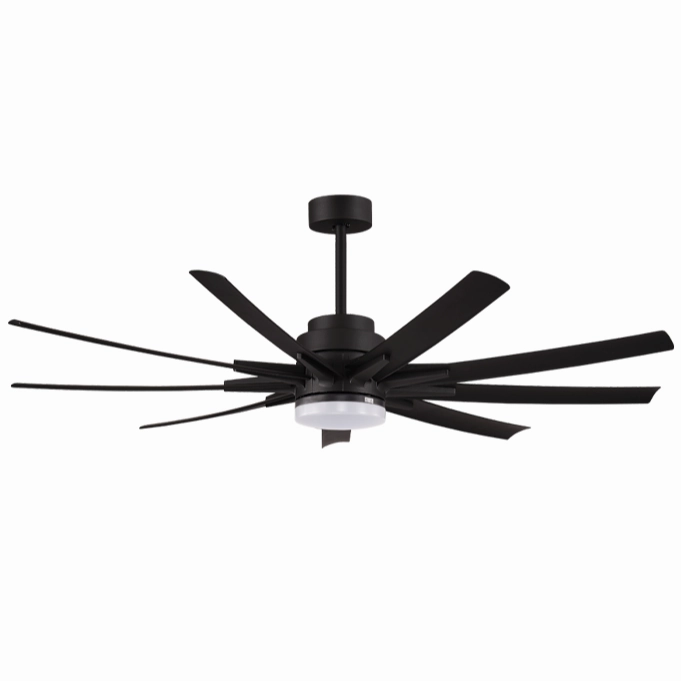

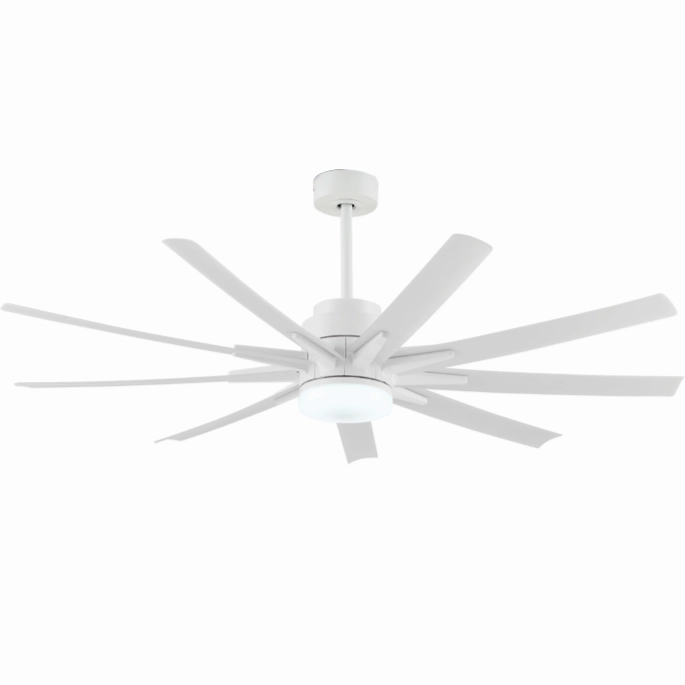

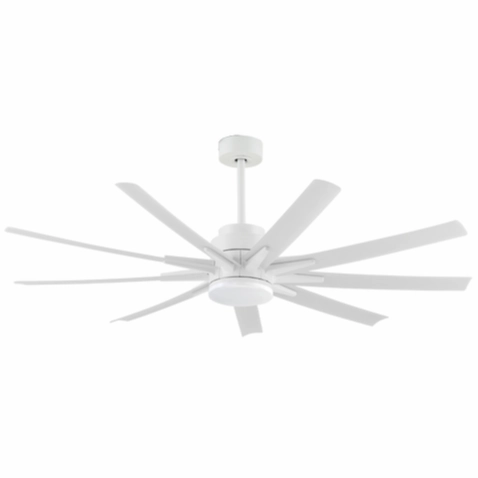

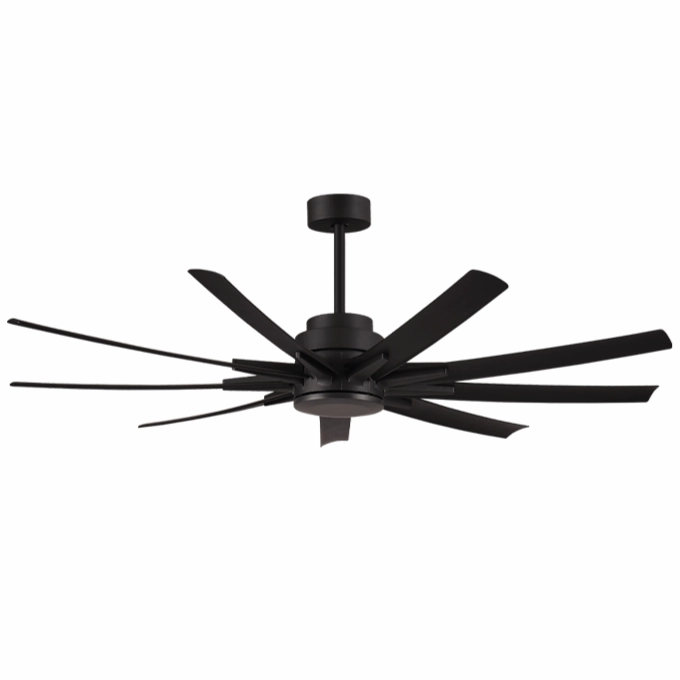

ONIX 60 ONIX is a stylish addition to any large spaces or homes. Rigged with our Heavy Dynamic Direct Current (HDDC) Motor, this gentle giant serves as a centralised source of ventilation. The ceiling fan is a 60inch variation of the lot. |
ONIX 72 Engineered and built with Korean technology, ONIX is a durable and carefully produced ceiling fan to suit large spaces. Here is the 72inch model in black or white. *ONLY for commercial spaces. |
ONIX 84 Pushing our design to the limits and combining it with a minimal design and aesthetic. The sleek design emphasises SPIN's effort to marry form and function. *ONLY for commercial spaces. Enquire for more information. |
SPECIFICATIONS
| Model Name | ONIX |
| Diameter | 60inch (1524mm); 72inch (1829mm); 84inch (2134mm) |
| Colour | White/Black |
| Voltage | 240V / 50Hz |
| Wattage (min/max) | 15/41W (60in); 13-41W (72in); 17/45W (84in) |
| LED | Tri-Light 22W LED (Optional) |
| Material | Metal Alloy (Motor Hub); ABS (Blades) |
| RPM (min/max) | 90/140RPM (60in); 60/100RPM (72in); 55/80RPM (84in) |
| CFM | 10943ft3/min (60in); 12186ft3/min (72in); 13074ft3/min (84in) |
| Motor | HDDC Motor (Heavy Dynamic Direct Current Motor) |
| Control | 6 Speed Remote; Wall Control (Optional) |
| Features | N Mode (Natural Wind), Timer Function, Dual Rotation (Forward/ Reverse) |
| Mount Type | Extension rod installation |
| Hanging Weight | 15.15kg (60in); 15.5kg (72in); 16kg (84in) |
| Warranty | 10 years for Motor only; 1 year for peripheral parts |
