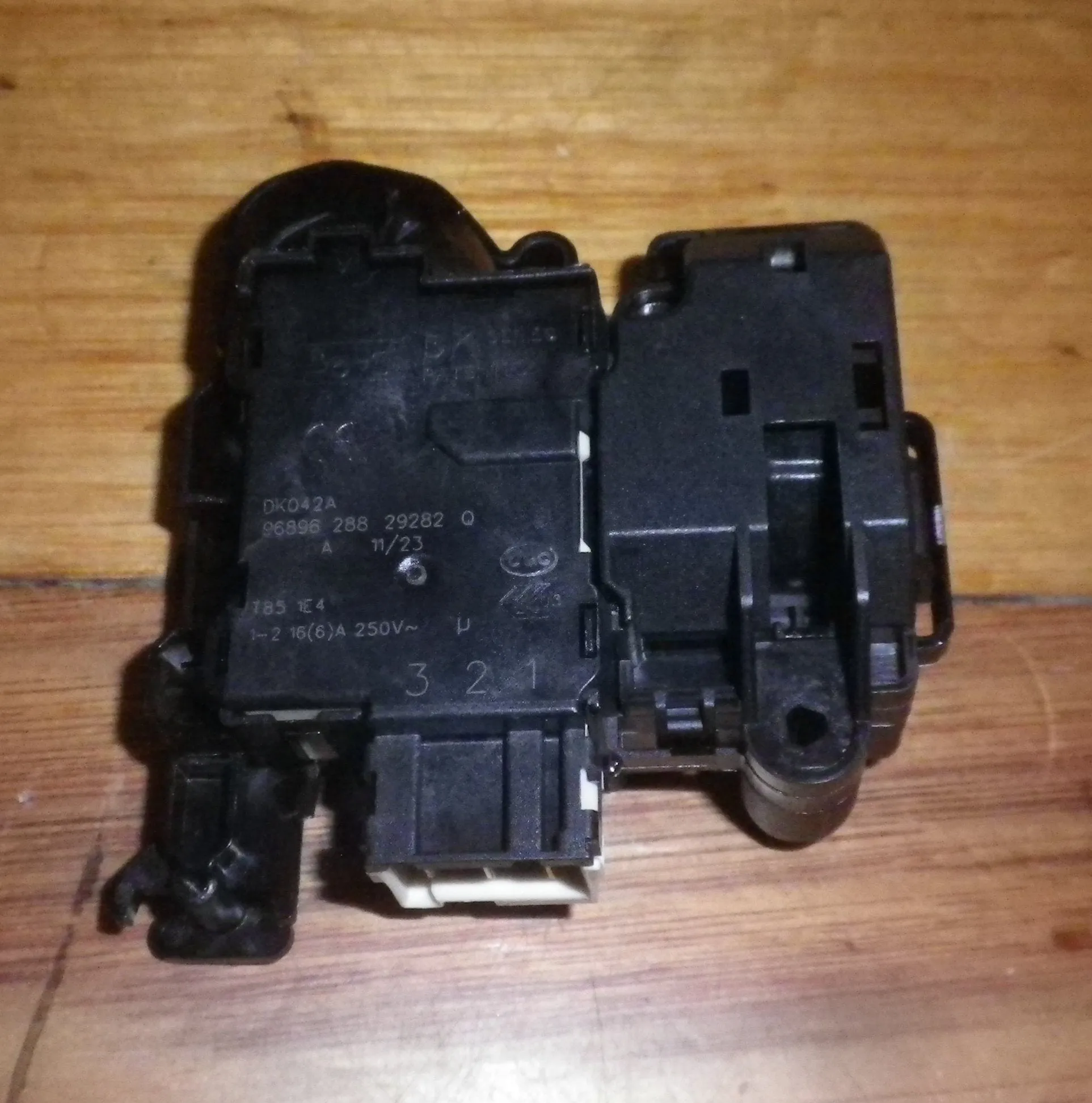

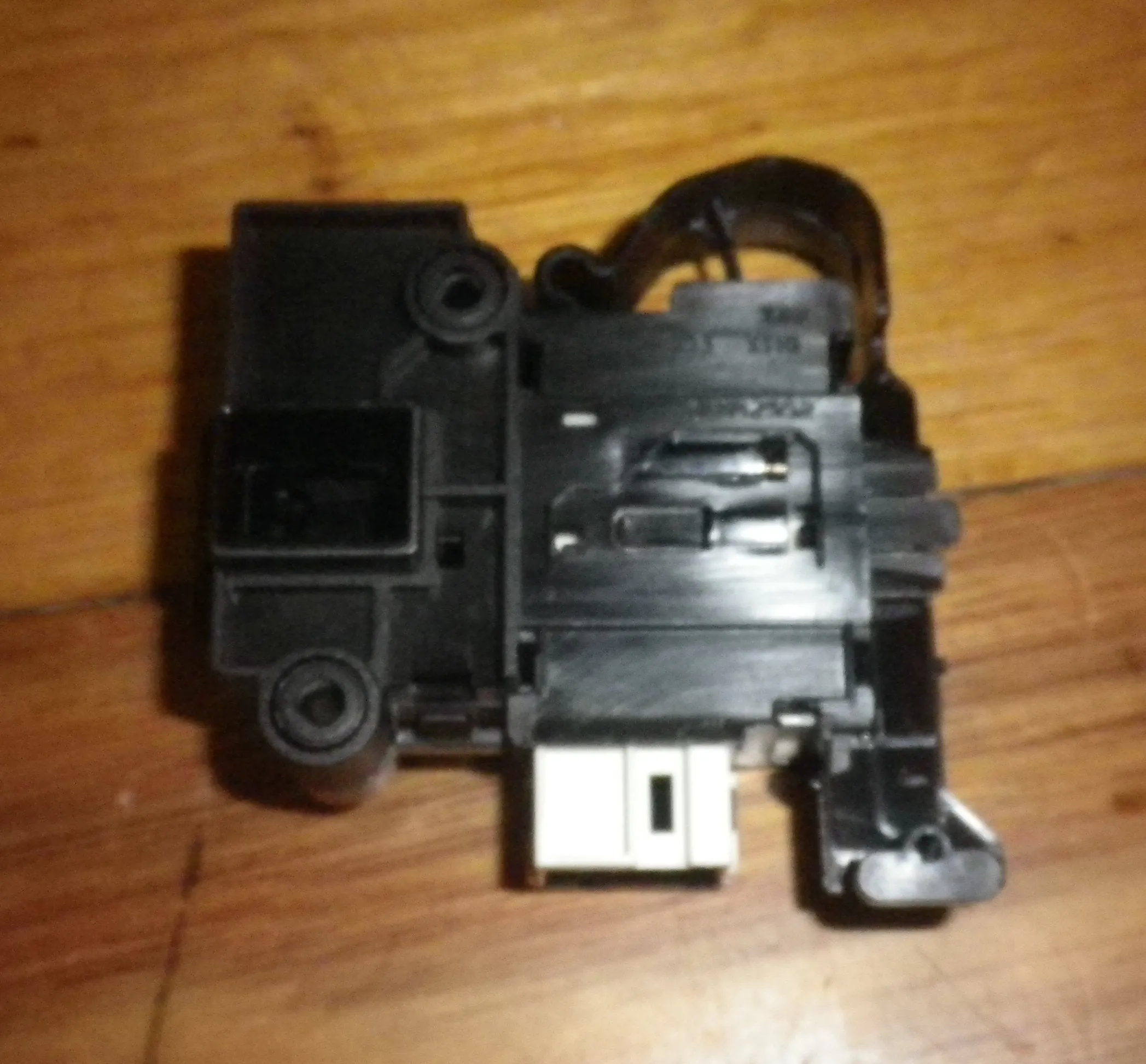

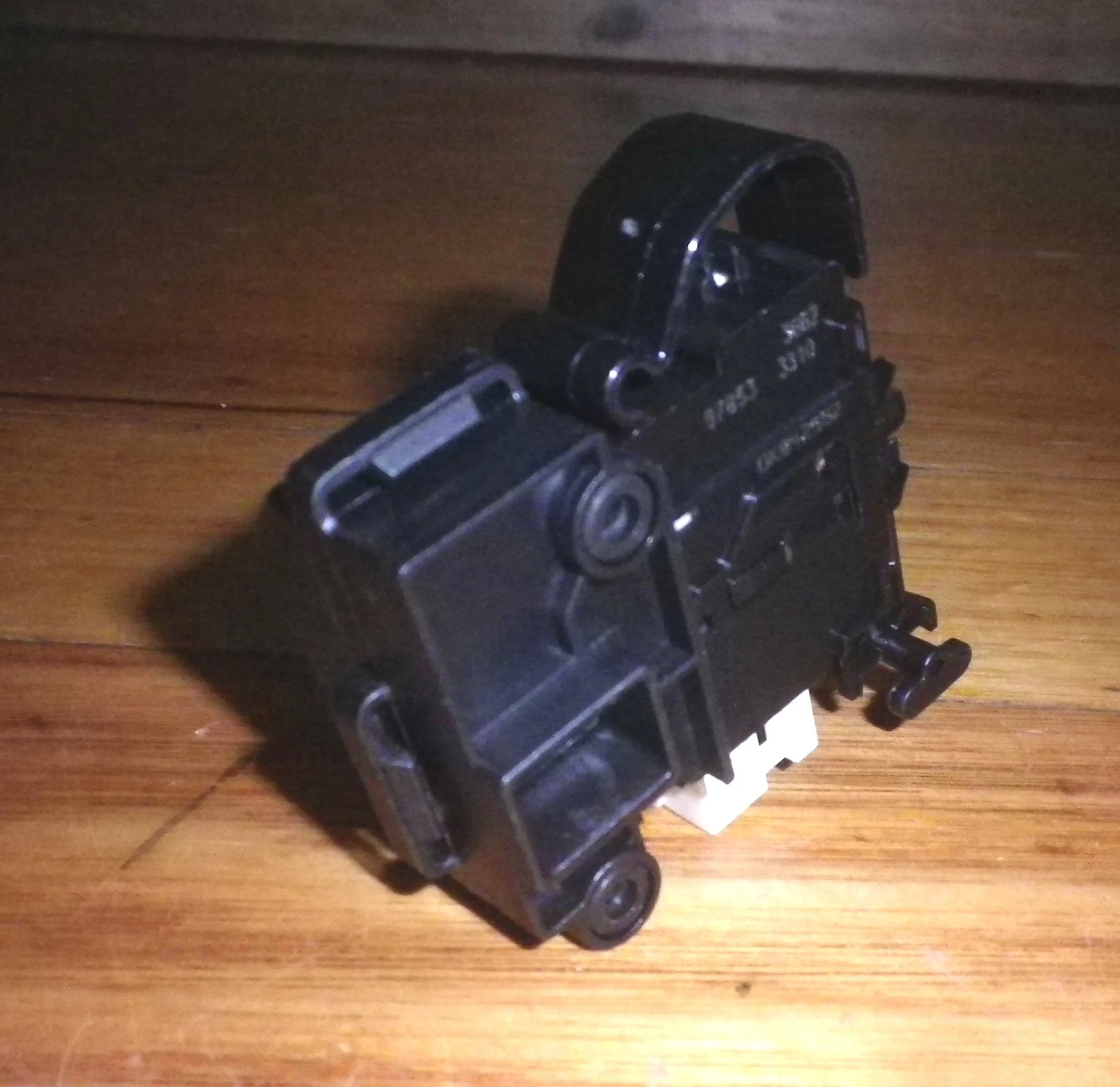

Fisher & Paykel, Haier Front Loader Washing Machine Door Interlock Switch.

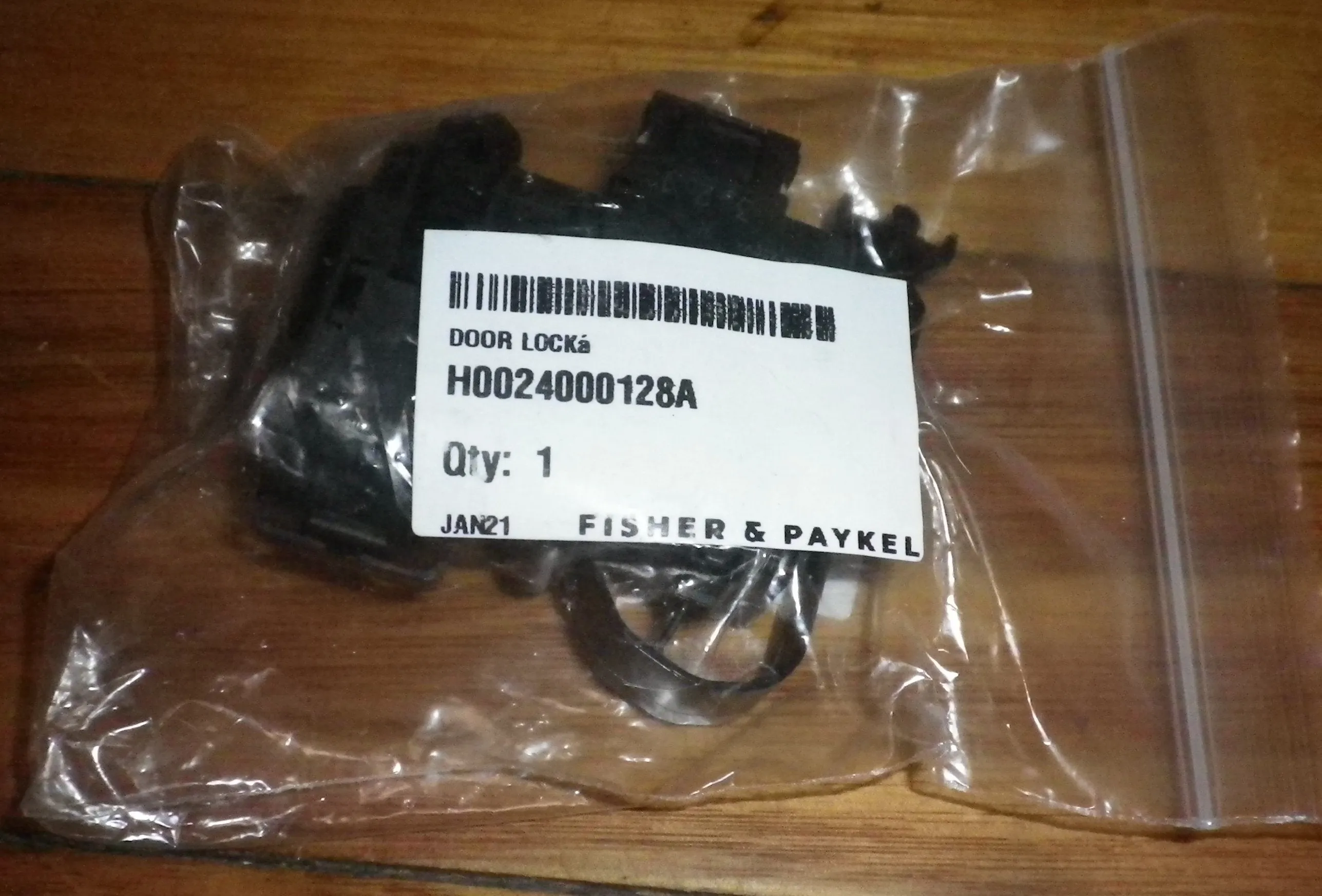

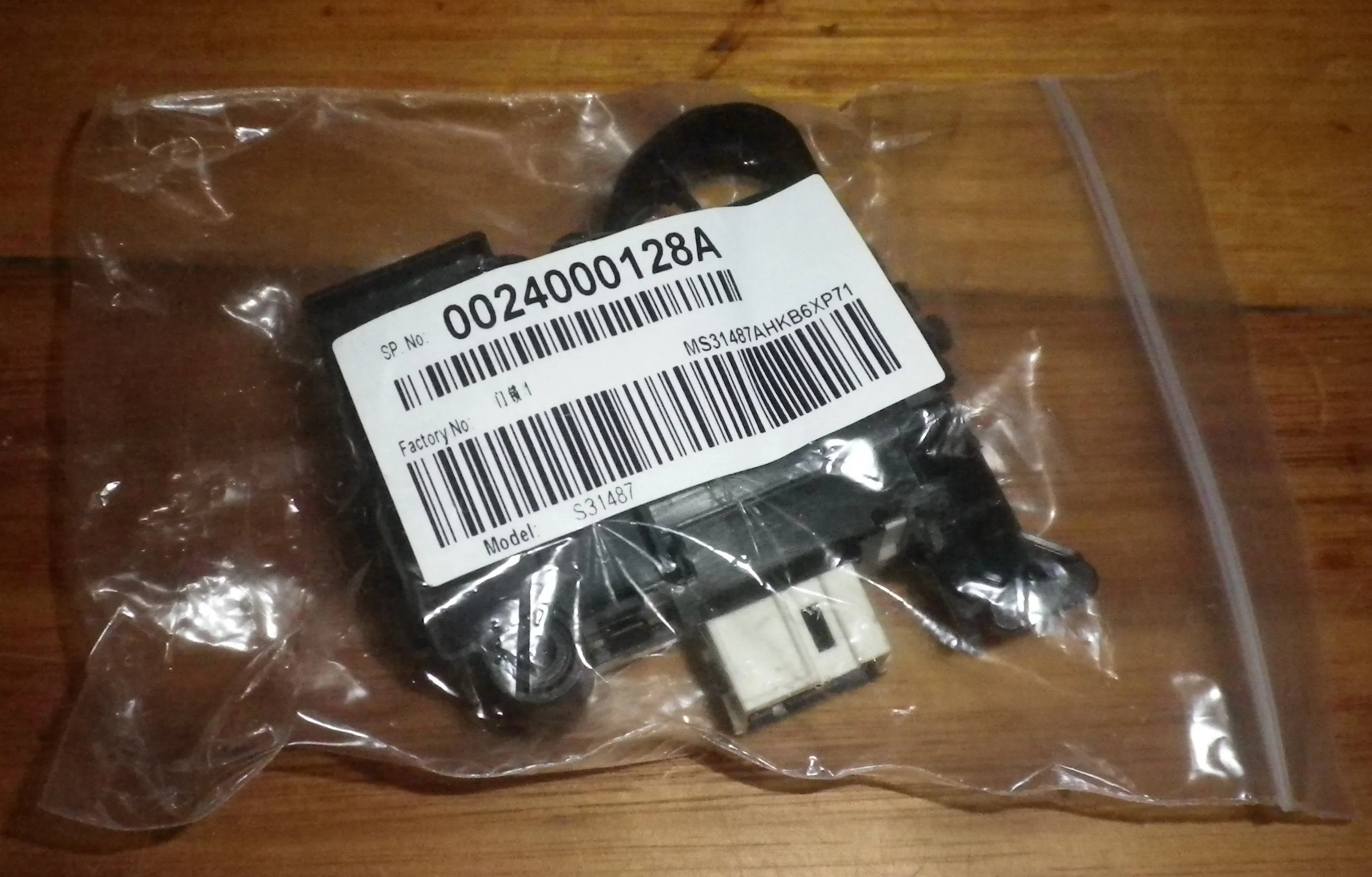

Genuine Part No. H0024000128A.

Other numbers 2805310100, 2805310400, DA003, 50066007, 1680001, FP790715, 790715.

This switch fits some Fisher & Paykel late model front loading washing machines including models WH7560J3 (92236-A), WH7560J3 (93249-A), WH7560P2 (92230), WH7560P2 (92230-A), WH7560P2 (93247-A), WH8060F1 (93228), WH8060F1 (93228-A), WH8060F1 (93255-A), WH8060P1 (93161-A), WH8060P2 (93229), WH8560J3 (93236-A), WH8560J3 (93246-A), WH7560J1 (92137), WH7560J2 (93230-A), WH7560J3 (92239-A), WH7560J3 (95125-A), WH7560P1 (92136), WH8060P1 (98112-A), WH8060P2 (93229-A), WH8060P2 (93248-A), WH8560F1 (92228), WH8560F1 (9228-A), WH8560F1 (93245-A), WH8560J1 (92142), WH8560J2 (92231-A), WH8560P1 (92141), WH8560P2 (92229), WH8560P2 (92229-A), WH8560P2 (93254-A). Also fits Haier models HWF85DW1 (62300-A), HWM85-1482 (61361-A).

Offset mounting holes are 39mm apart. Switch is 67mm long.

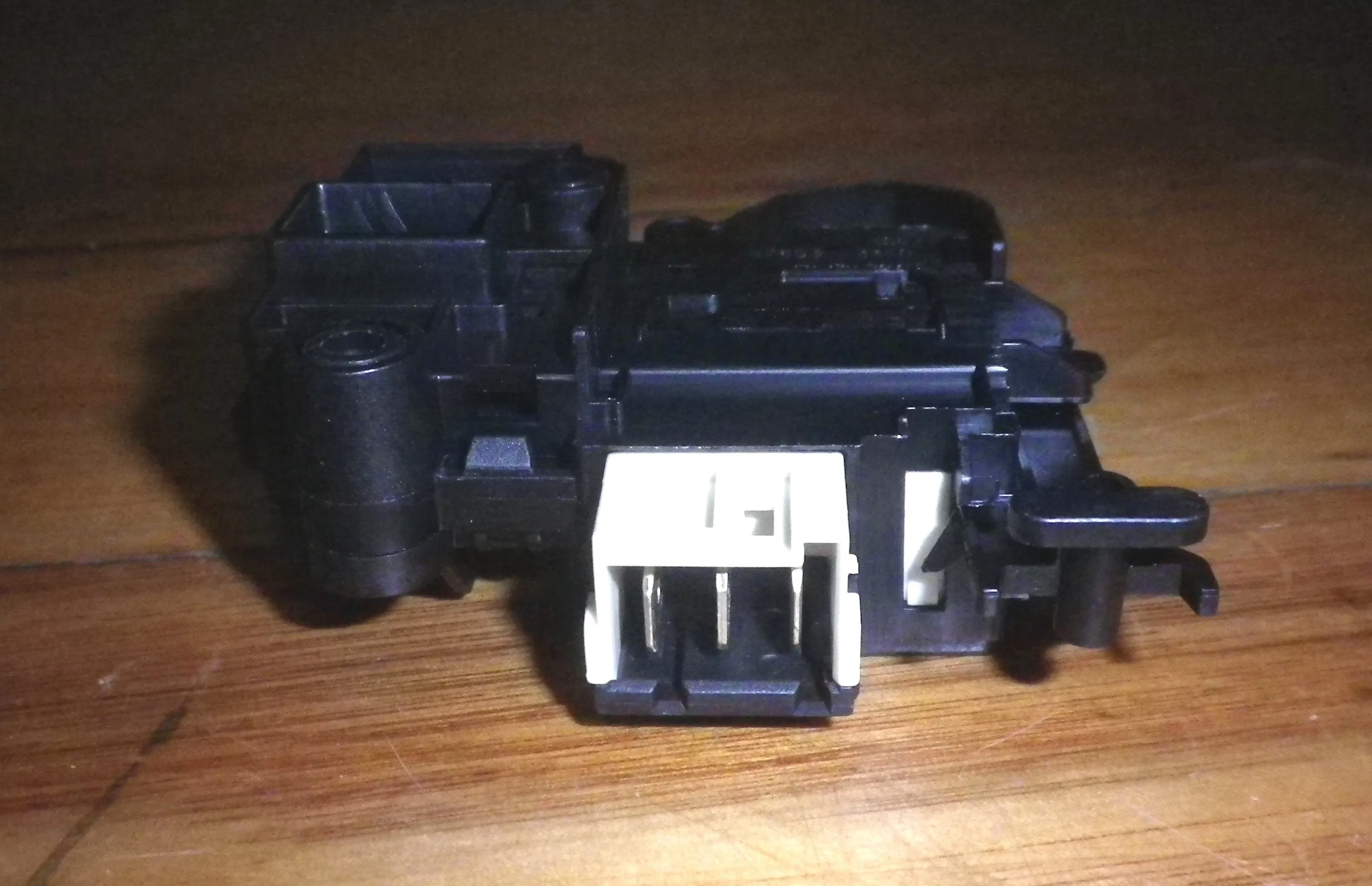

This interlock has 3 terminals.

We have been supplying appliance parts to the trade and retail for over 25 years. Buy with confidence.
