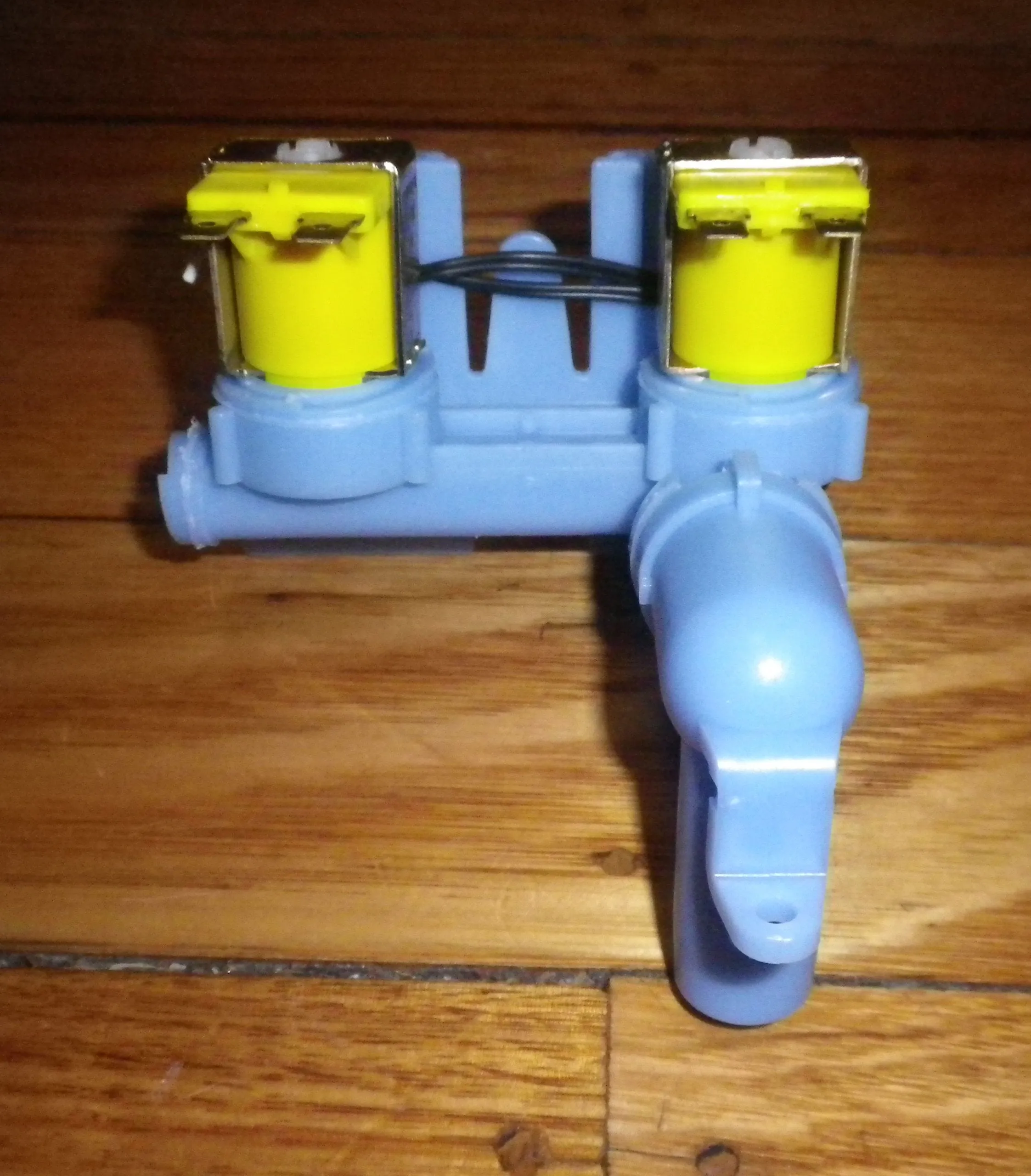

Fisher & Paykel 24Volt Hot/Cold Dual Water Inlet Solenoid Valve.

Part No. FP090, 1020136WS.

Similar to Part No. 424353P, FP424353P, W035FPL, 1020131WS.

Replaces Part No. 429657P, FP429657P.

This solenoid valve suits the some Fisher & Paykel washing machines. Used on Phase 6 GW612AU, IW612, GW712AU, IW712, IW812 & similar models. Can also be used on the GW512AU model if the sensor wire is left disconnected.

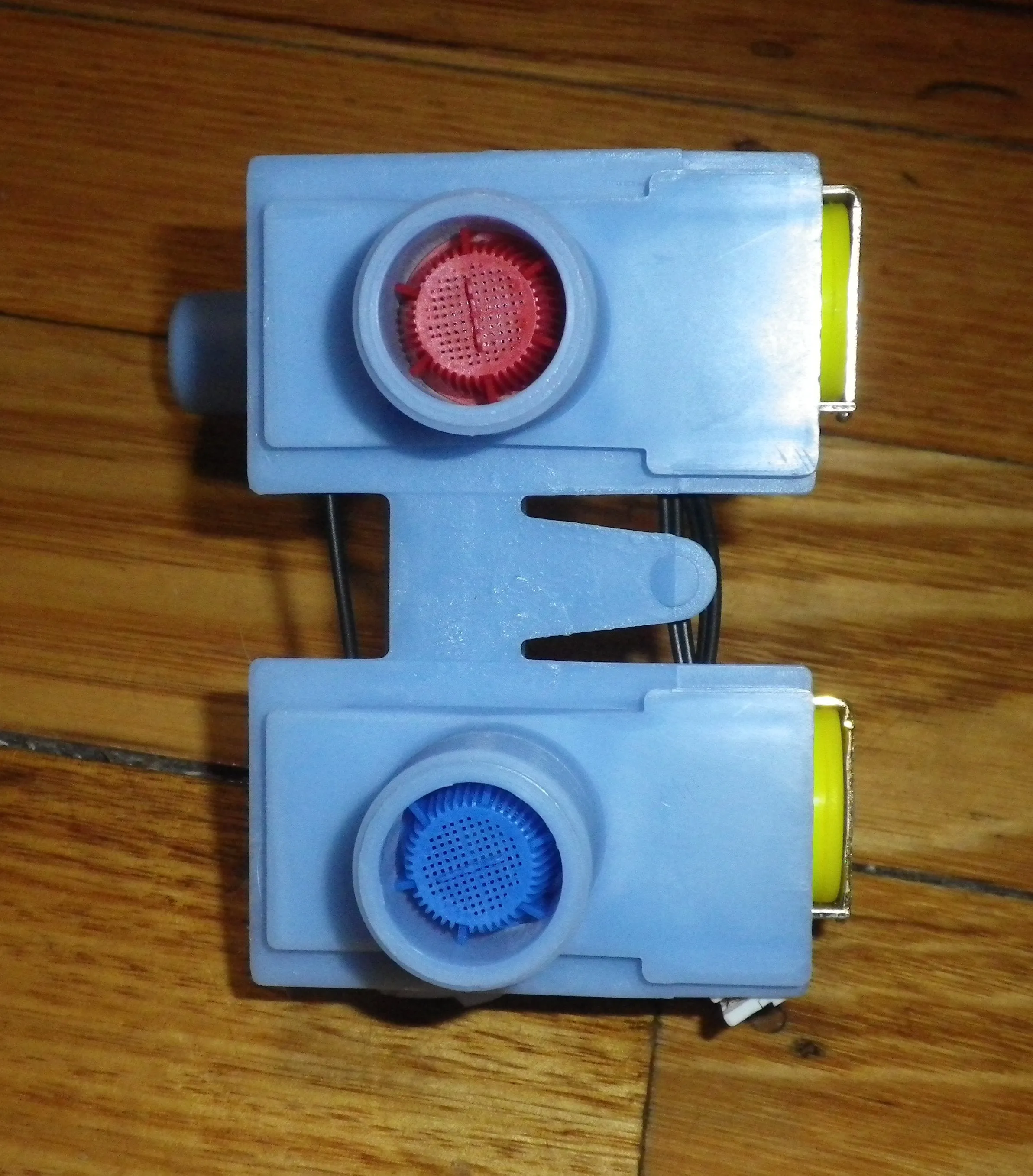

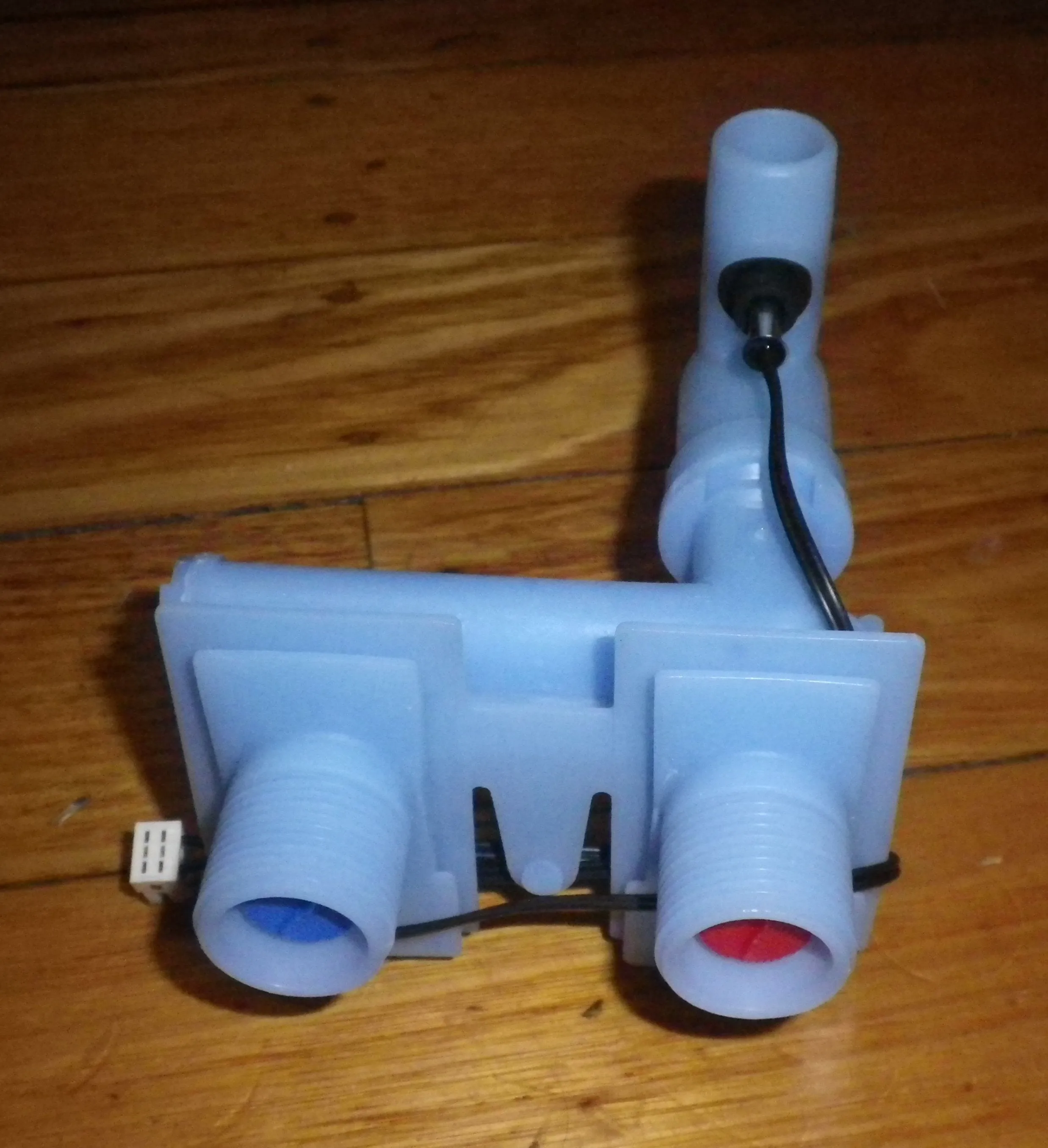

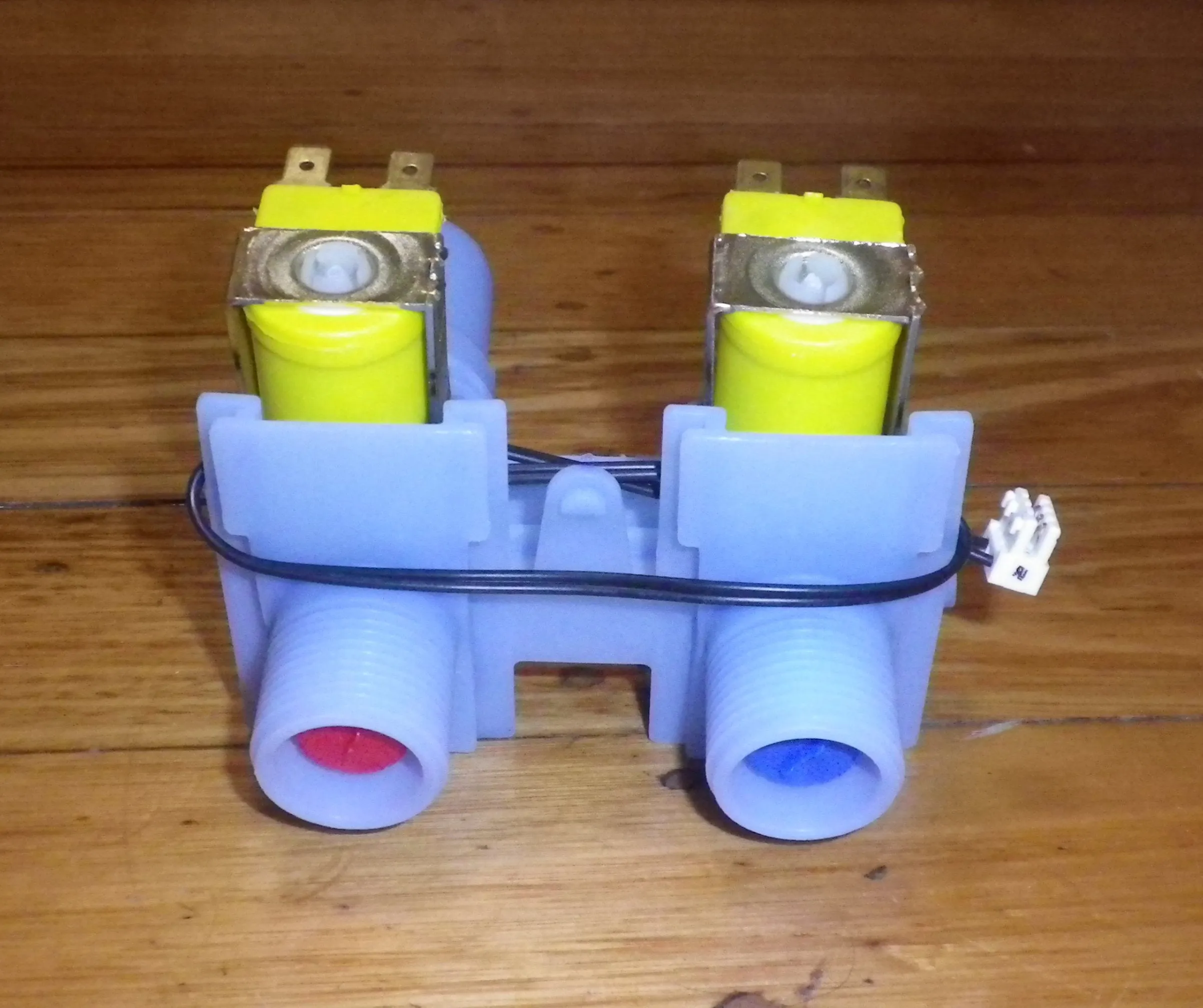

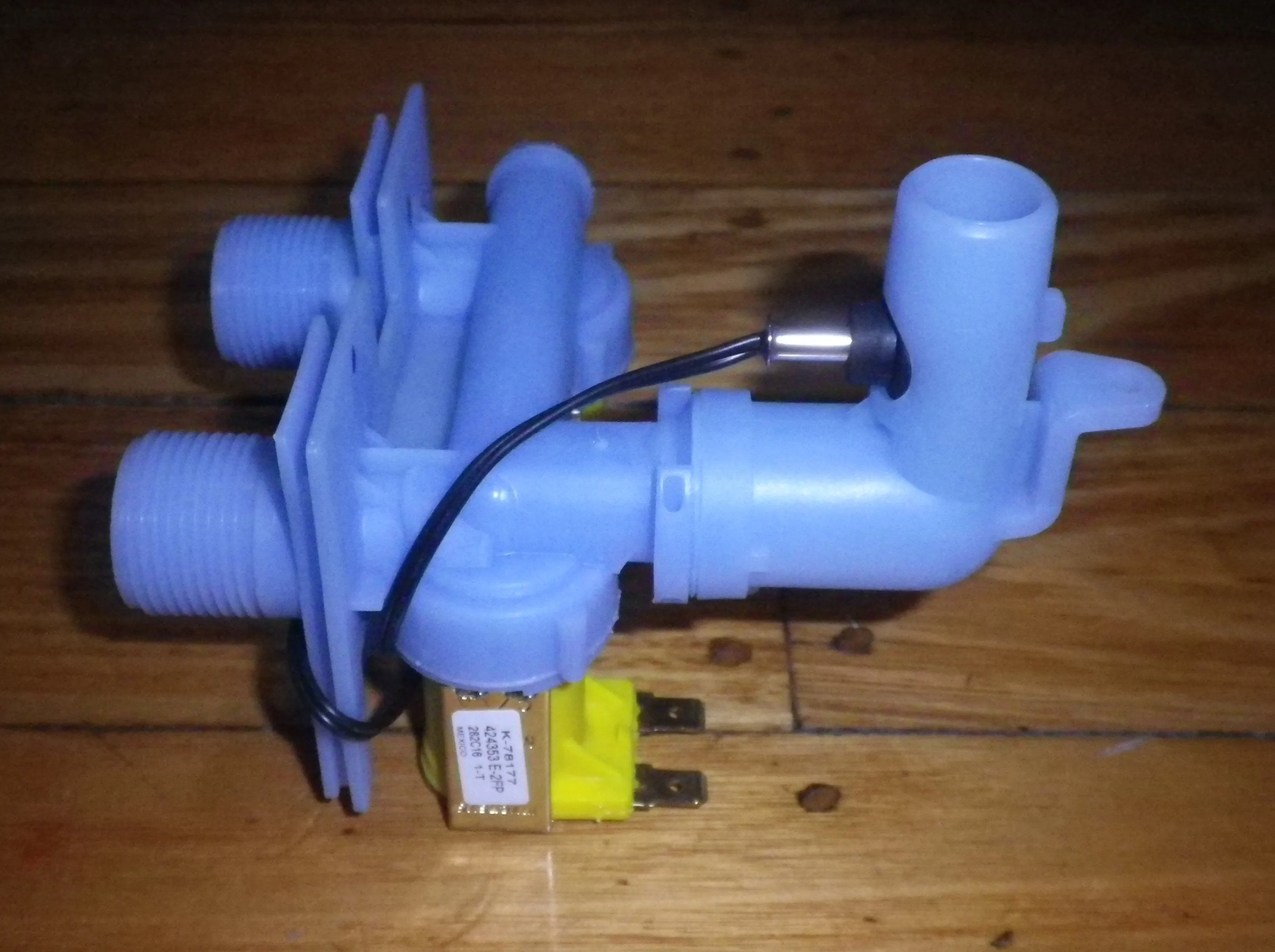

Earlier models use individual inlet valves for hot and cold. This part is a combination hot & cold valve complete with a temperature sensor in the outlet pipe.

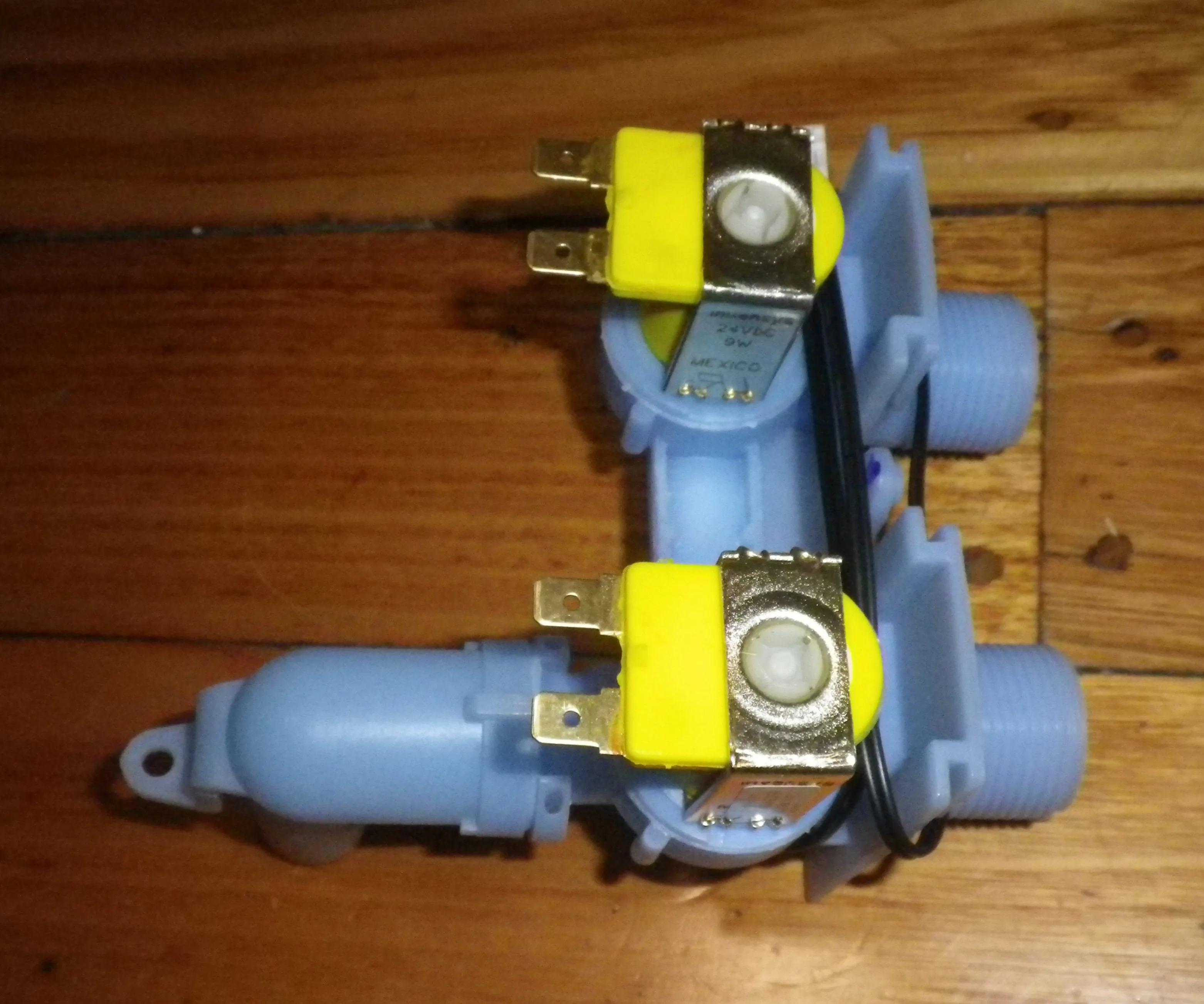

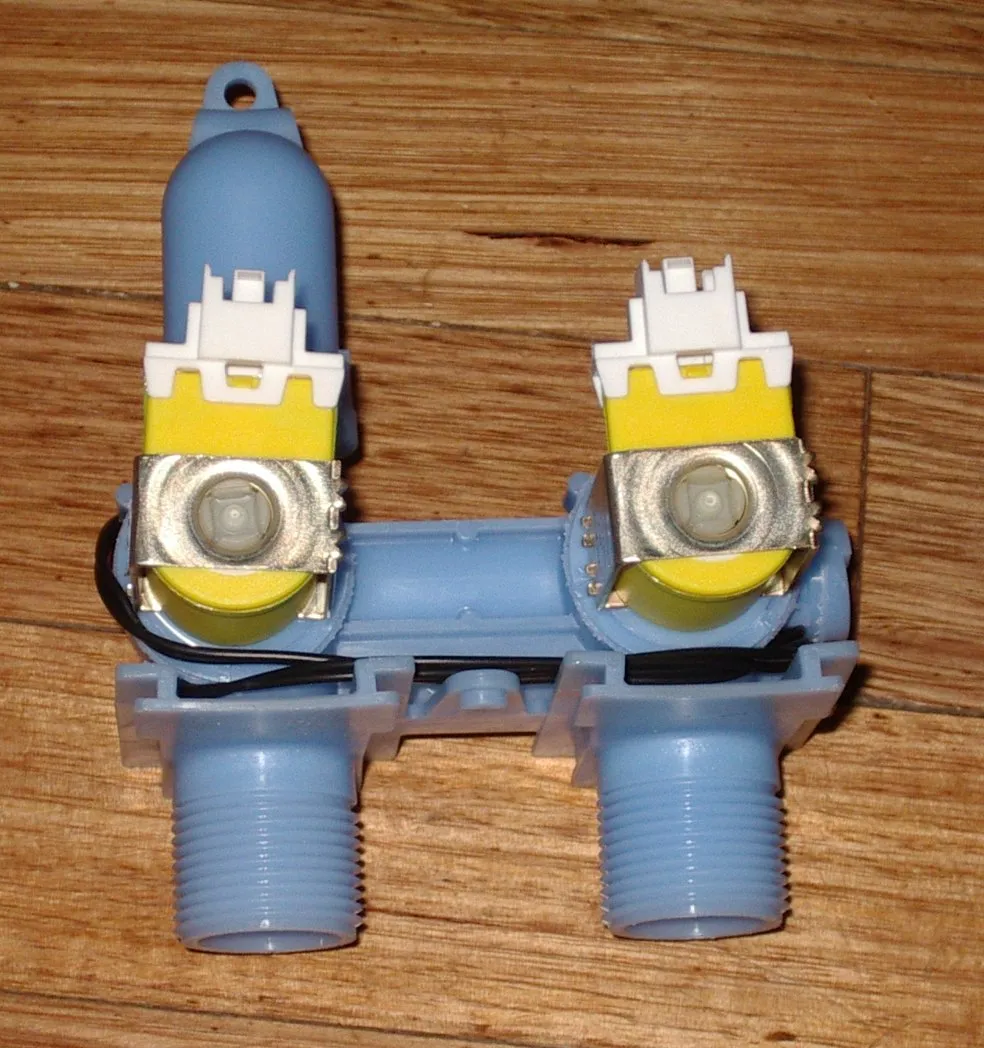

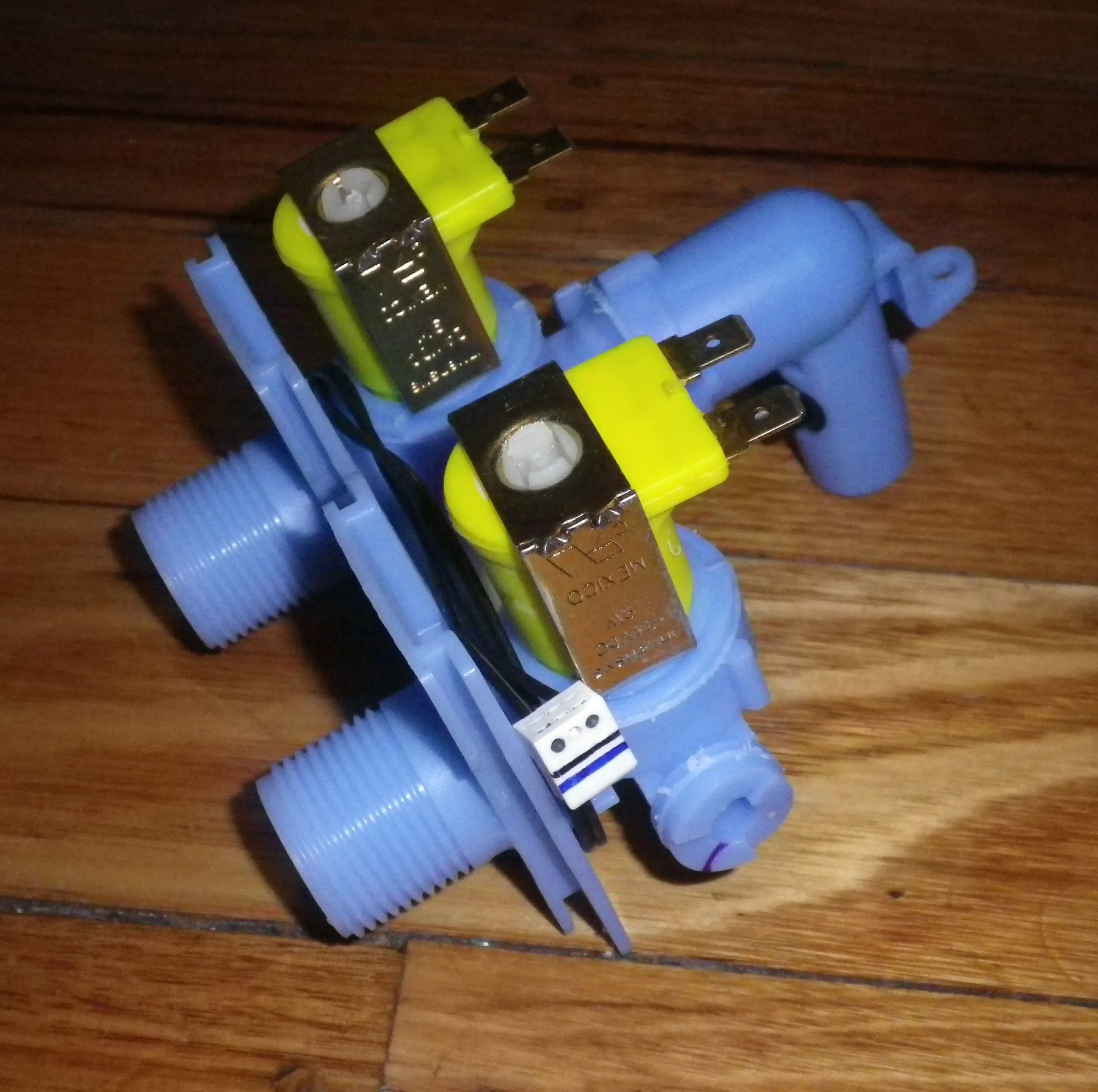

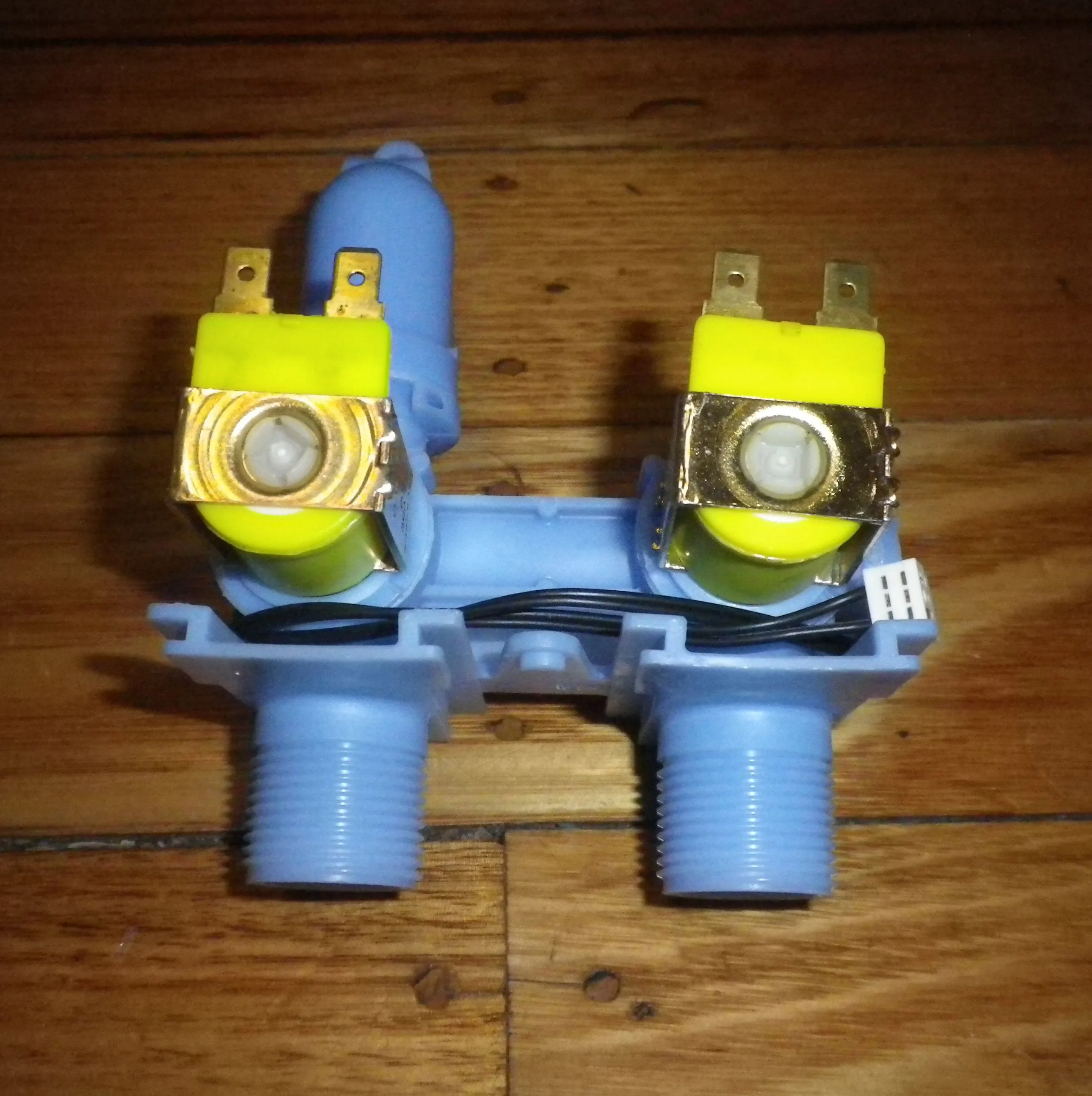

The solenoids on this valve are fitted with 6.4mm spade terminals. Early versions of this valve had different connectors to the valves themselves. Spade terminals may need to be fitted to the wires in the machine if your original valve has different connectors.

A genuine connecting harness suitable for use with this valve is also listed

Easy to fit. Fully guaranteed.
