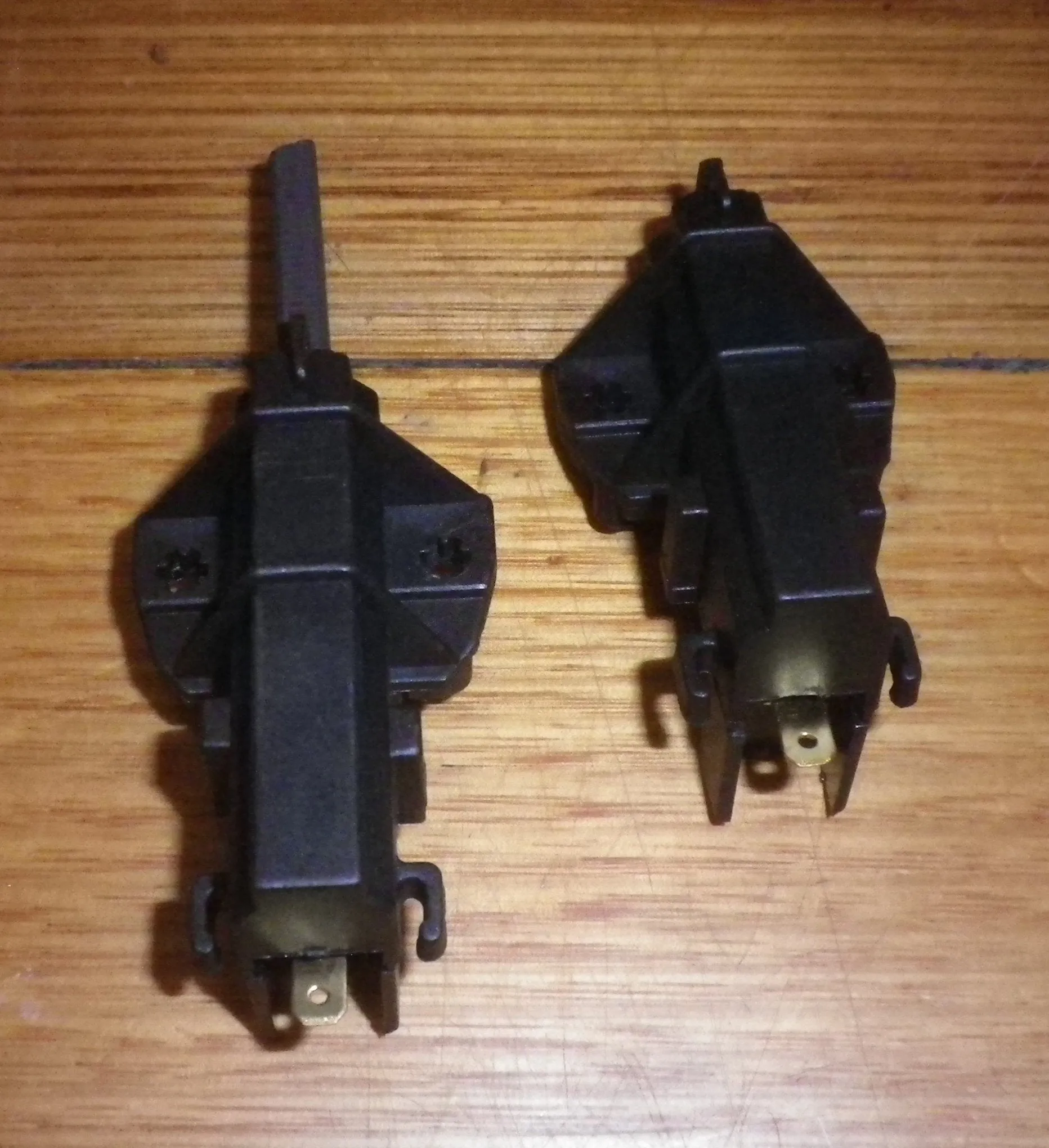

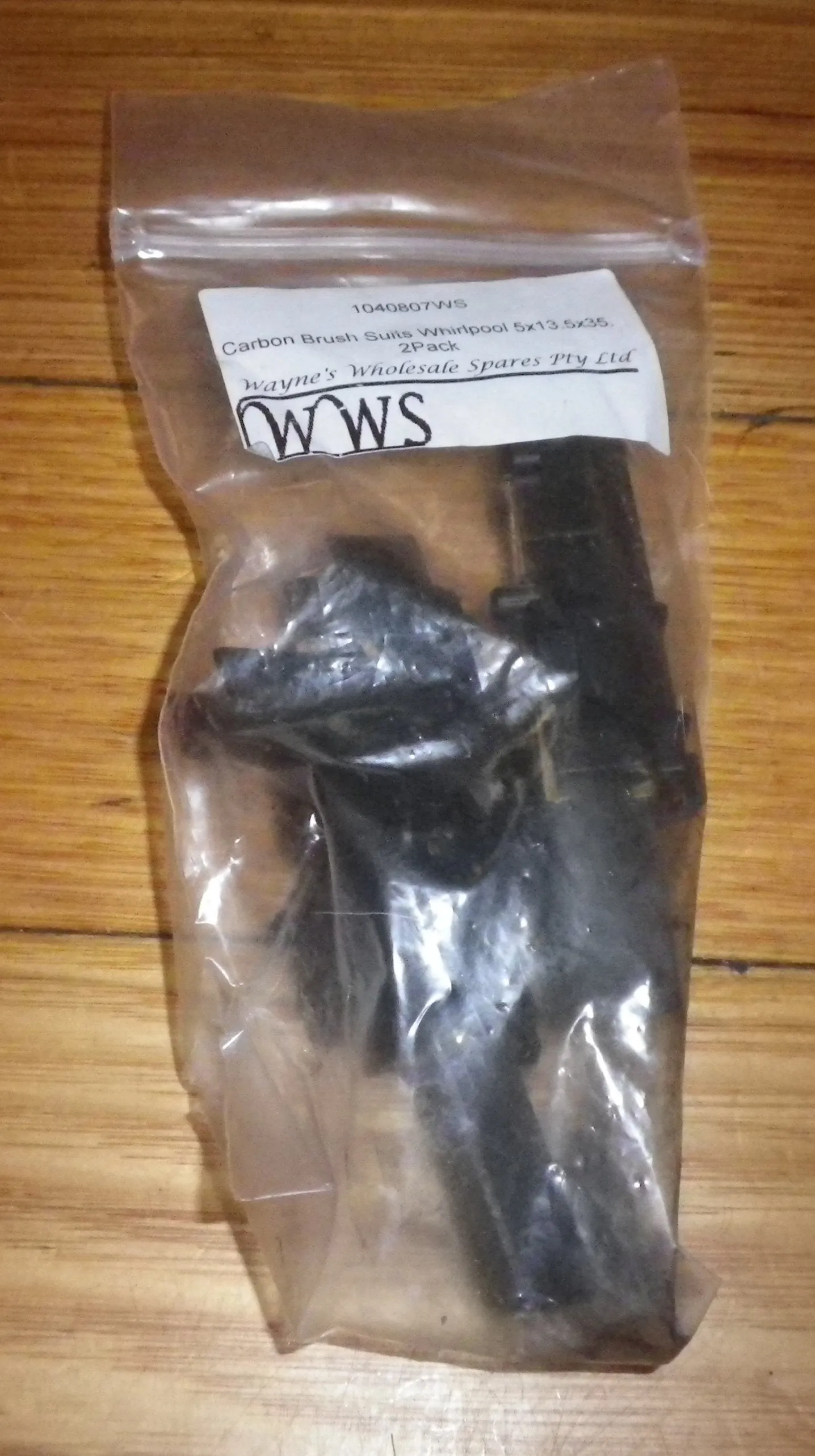

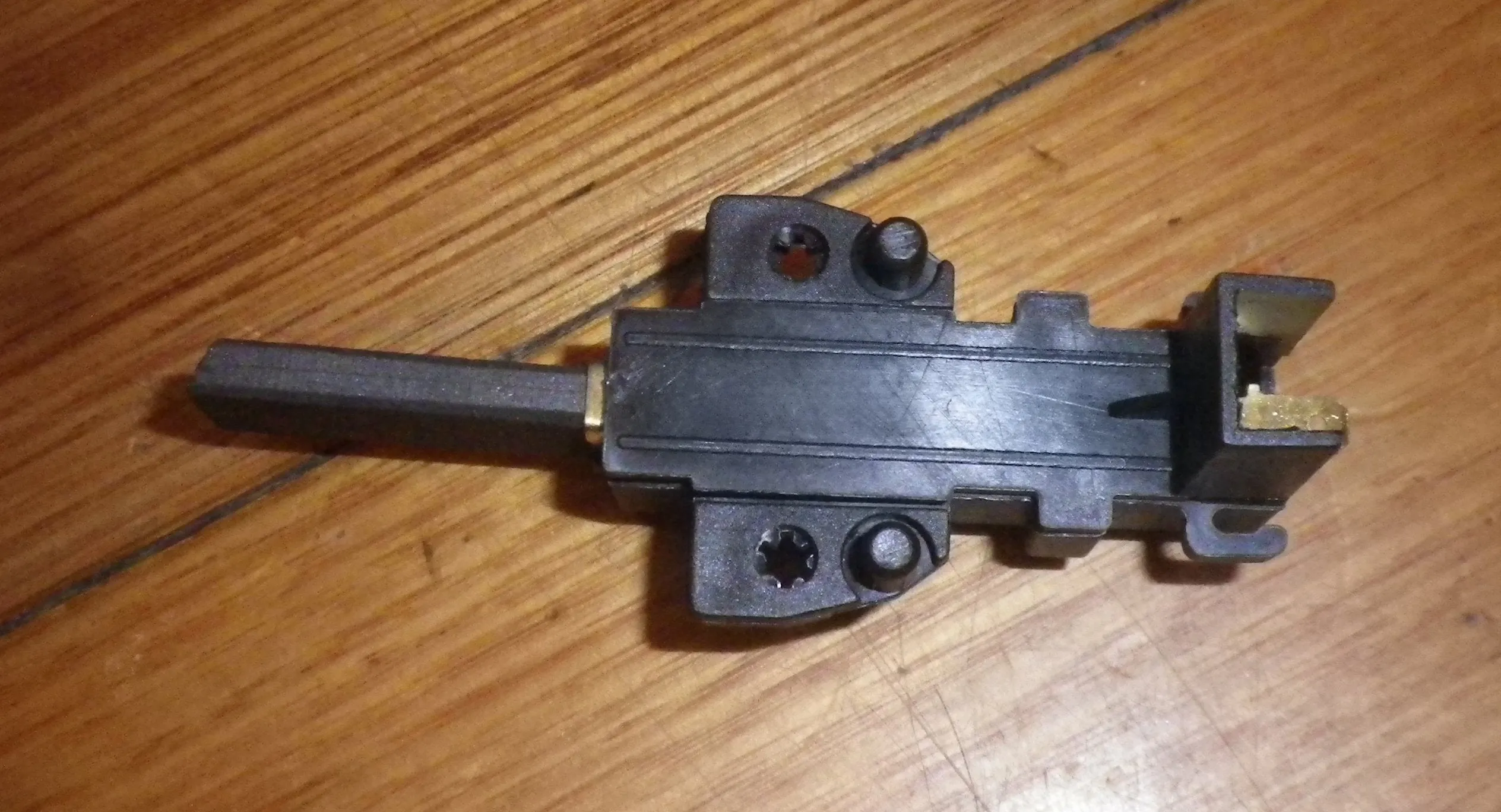

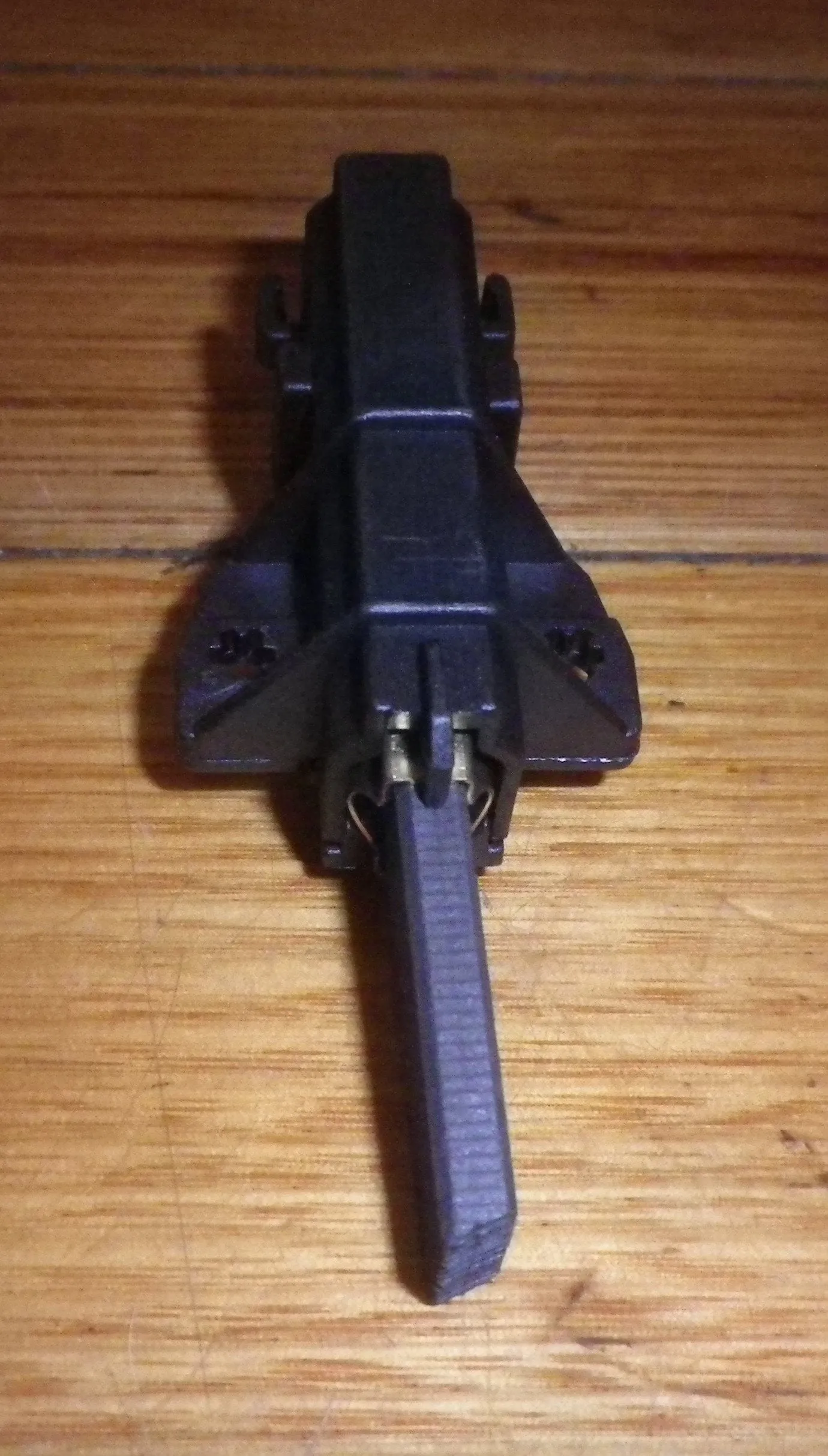

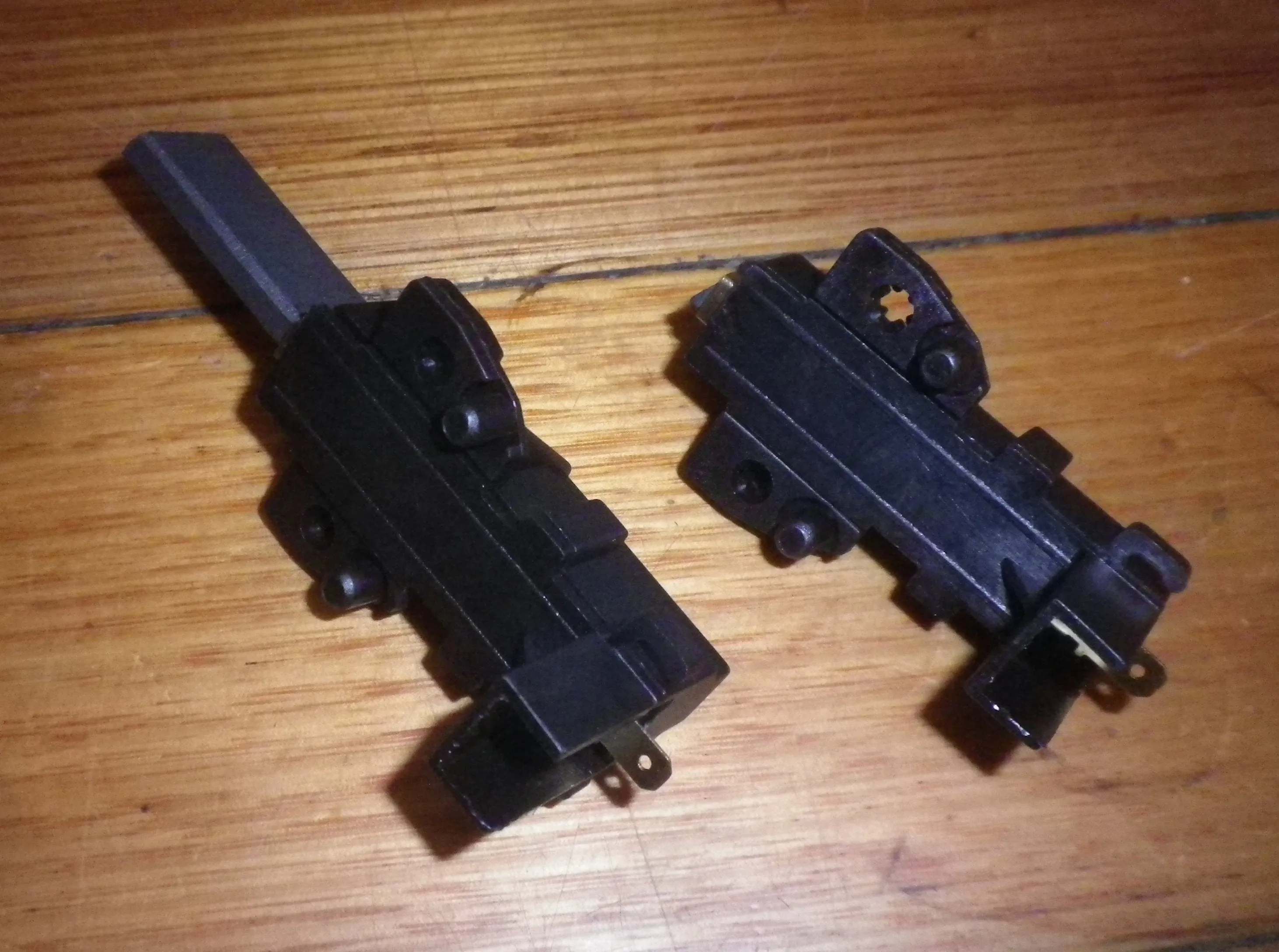

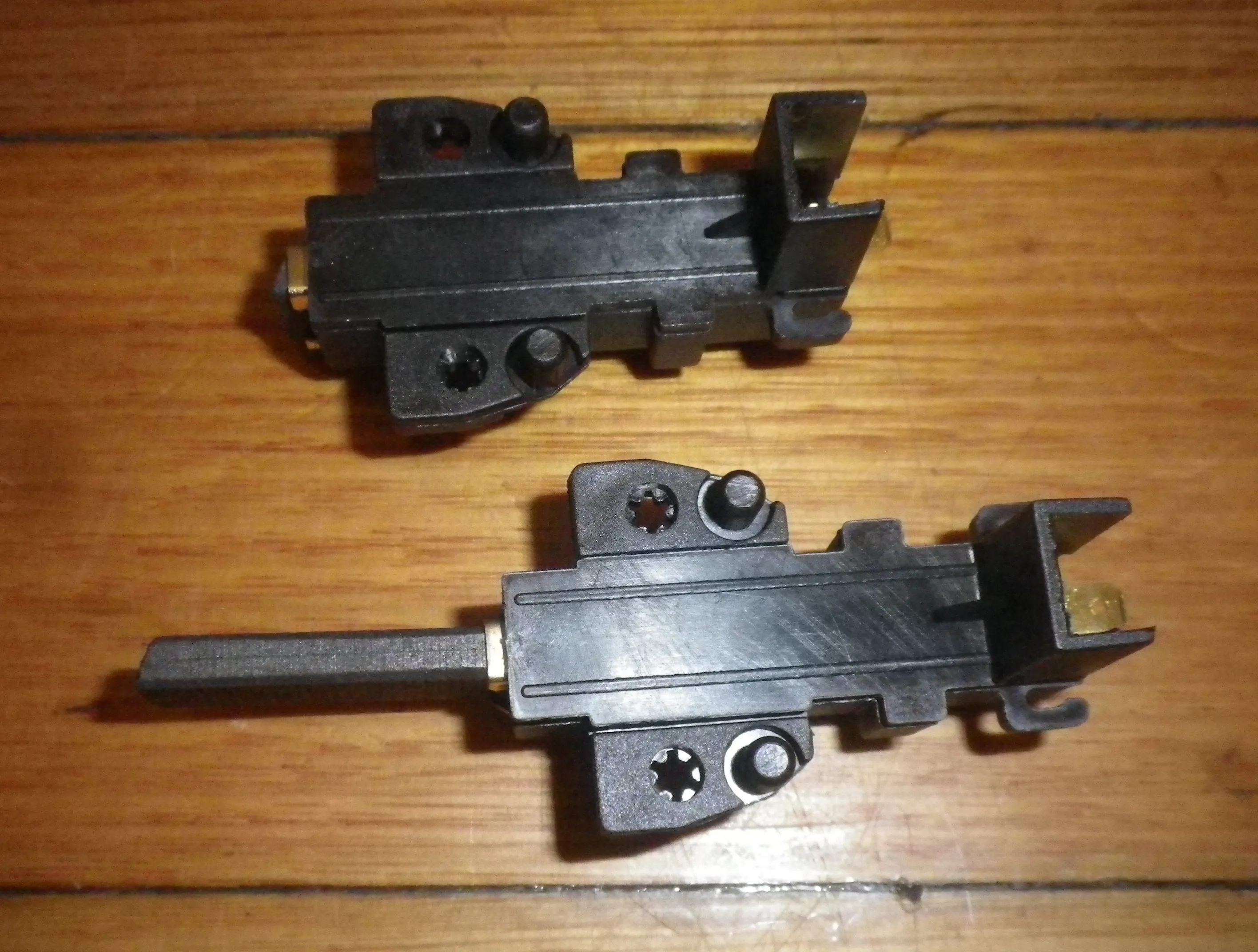

Motor Carbon Brushes to suit Indesit, Whirlpool, Philips Washing Machines (1 Pair).

Part no. 1040807WS.

Replaces 481931088529, 12SV02, CAR69.

Used in some Asko, Indesit, Whirlpool, Philips, Bauknecht, Candy, Hoover (non-Australian) New Wave 1200F model, Bosch, Neff & Siemens front loading washing machines and many others using a square C.E.SET (CESET) motor.

Mounting holes 25mm apart and are positioned 16mm back from font edge of brass brushholder. Locating pins are 25mm apart and are 26mm back from the front of the brass brushholders.

Carbons protrude 30mm from brass holder when new.

This is a very common brush type used in many European machines.

If you are not sure if it is suitable for your model, please contact us with your model number before purchasing.

The first sign that these are worn out is erratic spinning, or no spin at all.

Fits the following models:-

AWG012, AWG032, AWG032WP, AWG057-GB, AWG280/7, AWG280/7/1BR, AWG280/7/1WH, AWG280/7/1-WH, AWG280/7/1WH/WP, AWG280/7WH, AWG280/7WH/WP, AWG280/8AL/WP, AWG280/8BR, AWG2807, AWG350, AWG350/12, AWG350/12WH/WP, AWG350/7/01, AWG350/7/01/WP, AWG384, AWG562PW, AWG565/PW, AWG583, AWG593, AWG611, AWG613, AWG613WP, AWG689/PW, AWG690, AWG690WP, AWG696/PH, AWG711, AWG719, AWG719/10, AWG719/WP, AWG727, AWG727/10, AWG727/9, AWG727/WP, AWG729, AWG729/10, AWG729/9, AWG736, AWG736/WP, AWG739/1, AWG739/10, AWG739/12, AWG739/9, AWG740, AWG740/7/1WH, AWG740/7/1WP, AWG740/7WH, AWG745, AWG745/7WH, AWG745/8AV, AWG745/9NB, AWG748, AWG748/3, AWG748/9, AWG749, AWG749/1, AWG749/10, AWG749/9, AWG750, AWG750/7, AWG750/7AL, AWG765, AWG765/14/HA, AWG765/7WH, AWG765/8HA, AWG76514HA/WP, AWG769, AWG770, AWG770/7, AWG779, AWG779/1, AWG779/10, AWG779/9, AWG780, AWG780/9, AWG783, AWG783/10, AWG783/9, AWG784, AWG784/5,
AWG784/8, AWG784/9, AWG785, AWG785/12AV, AWG785AV, AWG789, AWG789/10,
AWG789/9, AWG789AWL330N, AWL330, AWL350, AWL350/12, AWL376, AWL386,
AWL396, AWM023/3/WS-GB, AWM027/WS-DA, AWM029/WS-GB, AWM045-GB, AWM049/3-GB, AWM1000, AWM1000/1, AWM1150, AWM1200, AWM1200/1, AWM1201, AWM1203, AWM1250,
AWM1400, AWM1403, AWM1830, AWM1866, AWM1866/WH/WP, AWM219/1, AWM219AL/1,
AWM220/1, AWM221, AWM228, AWM232, AWM234, AWM320, AWM320/3, AWM321, AWM321/3, AWM321/3AL, AWM321AL, AWM322, AWM323, AWM323/3, AWM323/3AL, AWM323AL, AWM323-GB, AWM324, AWM324/3, AWM325, AWM325/3, AWM326, AWM327, AWM327/3, AWM328, AWM328/3, AWM329, AWM330, AWM336/3, AWM337/3, AWM347, AWM370, AWM371, AWM373, AWM374, AWM5104, AWM5104/1, AWM5104/3, AWM5104/AL, AWM5104IX, AWM5106, AWM5125, AWM5125/1, AWM5125/3, AWM5145, AWM6100, AWM6110/3, AWM6111, AWM6120, AWM6120/1, AWM6120/3, AWM6120/S, AWM6123/PL, AWM6123/PL/S, AWM6125/3, AWM6129, AWM6140/3, AWM6141/1, AWM6141/S, AWM6145/3, AWM8085/1, AWM8101, AWM8103, AWM8103/1, AWM8103/3, AWM8103/S, AWM8113/1, AWM8121, AWM8121/S, AWM8123, AWM8123/1, AWM8123/2, AWM8123/3, AWM8123/S, AWM8125/3, AWM8129, AWM8143/1, AWM8143/3, AWM8143/S, AWM8143-GB, AWM8145/3, AWM8163/1-GB, AWM8163/3-GB, AWM8163-GB, AWM820, AWM820/BR/WP, AWM820/WH/WP, AWM822, AWM822/WH/WP, AWM827, AWM827/WP, AWM830, AWM830/AL/WP, AWM830/WH/WP, AWM835, AWM835/WP, AWM837/WP, AWM840, AWM840/WP, AWM844/WP, AWM845, AWM845WH/WP, AWM846, AWM846/WP, AWM847, AWM847/WP, AWM848, AWM848WP, AWM850, AWM850/AL, AWM850/WH, AWM850AL/WP, AWM850WH/WP, AWM857, AWM857/20WP, AWM857/WP, AWM859, AWM859/WP, AWM860, AWM860WH/WP, AWM865, AWM865/WP, AWM866, AWM866WH/WP, AWM867, AWM867/WP, AWM868, AWM868WP, AWM870, AWM870/WP, AWM877, AWM877WP, AWM880, AWM880H/WP, AWM890, AWM890WH/WP, WA175WS/10A, WA192/1S, WA192S/WS16A, WA192WH, WA192WS/10A, WA194/1S, WA196/1S:A2000, WA199/1S10A, WA199S/WS16A, WA199WS, WA2340/WS-D, WA2381/WS-GB, WA2560/WS-GB, WA2581/WS-GB, WA3573/WS-D, WA538, WA541, WA541/12, WA541/2-B, WA541/9, WA541WS-B, WA583, WA591/1WS-EU, WA6750-GB, WA6751W-D, WA8588W/WS-B, WA8760-GB, WA8988-GB, WA9430/1WS-NL, WA9430A/WS-GB, WA9430WS, WA9431E/WS, WA9437WS-D, WA9640A/WS-GB, WA9657LIMITED, WA9685/C/UD/WS, WA9685CUD/BR10A, WA9850/1WS, WA9877WS, WA9882C/WS, WAE8987, WAI2530/WS, WAI2542/2, WAK6957, WAL10988, WASTUTTGART, WB120011, WB120021, WDG1095GH(G), WDG1195WG/1, WDG1295WG**, WDM15001**, WE120031, WE140001**, WE140031, WE143071, WE145001**, WE146001**, WE147001**, WFB1602, WFB1605, WFB2000, WFB2002, WFB2004, WFB2005, WFB2405, WFB3000, WFB4000, WFB4001, WFB4002,
10505 (some).

Easy to fit. Fully guaranteed.

We have been supplying appliance parts to the trade and retail for over 25 years. Buy with confidence.
